Mixer for mixing food products (paddle mixer) STvega BMix H250/H350/H650/H1200

The STvega BMix H250/H350/H650/H1200 mixer is designed for mixing multi-component products.

Specifications STvega BMix H250:

Dimensions, mm 1230*925*1480
Volume, l 250
Power, kW 2,2
Voltage, V 380
Frequency, Hz 50
Material stainless steel SUS304
Вага, кг 350

Uniqueness of the machine: The mixer, in addition to the motor and electrical part, is made of thick stainless steel of high quality.



Categories: , ,

Description

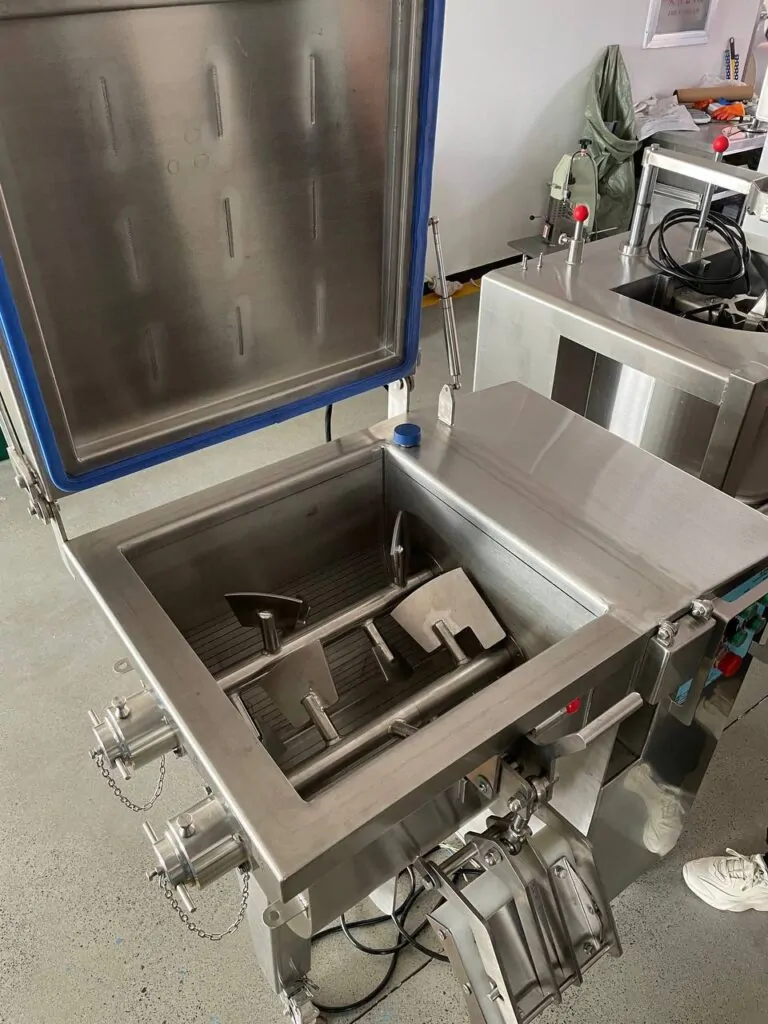

The STvega BMix H250/H350/H650/H1200 mixer is designed for mixing multi-component products. It is able to mix viscous foods such as rice, meat, minced meat, as well as vegetable products, cold cuts, salads, etc., to a homogeneous consistency. The mixer can be equipped with a vacuum mixing function.

Principle of operation:

According to technological requirements and approved recipes, the various components are loaded into the mixing hopper. After pressing the “start” button, the stirring mechanism starts. The operating time is controlled by the operator, it is possible to use the “start”/”stop” function. The augers can rotate in different directions. After mixing is completed and the mechanism is turned off, the finished product is unloaded through the outlet at the bottom of the mixer into the prepared container.

Equipment advantages:

  • Mixing Efficiency: The use of two screws with four blades on each, having a minimum gap with the container, reduces product damage and speeds up the mixing process.
  • Mixing under vacuum: The ability to supplement the mixer with the mixing function under vacuum ensures a denser, uniform and homogeneous product.
  • Safety and convenience: Thanks to the viewing windows, it is possible to lubricate the auger conveniently and safely during operation.
  • Sturdy construction: The mixer, except for the motor and electrical part, is made of thick stainless steel of high quality.

system

system

system

Specifications STvega BMix L250 STvega BMix L350 STvega BMix L650 STvega BMix L1200
Dimensions, mm 1230*925*1480 1430*965*1590 1700*1060*1710 2300*1400*2200
Volume, l 250 350 650 1200
Power, kW 2,2 3,3 4,5 7,5
Voltage, V 380
Frequency, Hz 50
Power supply 3 phases or according to the customer’s technical specifications
Mixing speed (low/high), rpm 20/40
Control Waterproof buttons
Lubrication Oil Nozzle
Material stainless steel SUS304
Weight, kg 350 400 700 1100

The company provides full warranty and after-sales service.
