Description
The STvega 1VC H vacuum packer is designed for packaging food and non-food products. It creates an airtight vacuum environment that provides optimal storage conditions for meat, fish, poultry, seafood, vegetables, herbs, nuts, dried fruits, spices and other goods.
Vacuum packaging is equally effective for fresh raw materials and for pre-processed products – salted, pickled, smoked or boiled. This method of packaging prevents mold, rotting, oxidation, drying and weathering, and also protects against moisture. This allows you to maintain the quality and freshness of products for a long time and significantly extend their shelf life.
Principle of operation:

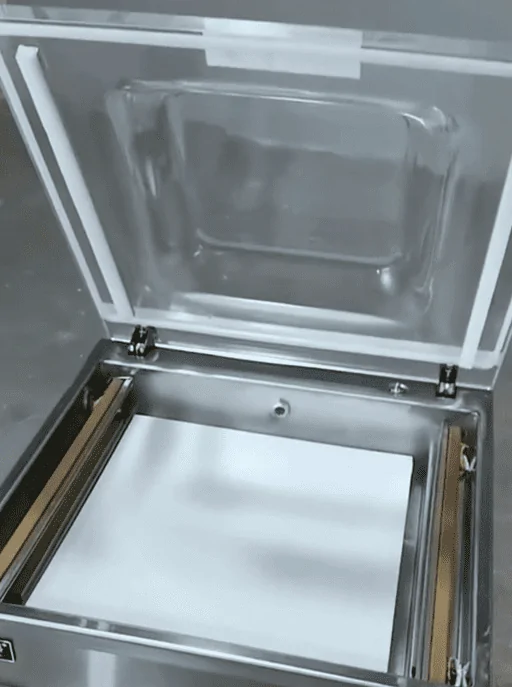

The operator places the bag with the product in the vacuum chamber, placing the edge of the bag on the heating bar, and then closes the lid. Packaging parameters are set using the built-in touch control panel. Once the program starts, the vacuum pump pumps air out of the chamber, creating an airtight environment.
When the specified vacuum level is reached, the sealing is turned on: the heating element rises to the pressure bar, voltage is applied to it and the seam is hermetically welded. After a short cooling, air is automatically supplied to the chamber and the lid can be opened. The operator takes out the packaged product.
The depth of the chamber can be adapted to individual order. Process control is possible thanks to a transparent cover made of impact-resistant plastic.
Equipment advantages:
- The vacuum chamber is made of stainless steel using seamless casting technology, which ensures a long service life of the equipment, and also simplifies cleaning.
- Convenient adjustment of machine operation parameters using the built-in touch panel.
- A wide selection of models for different performance and budget, depending on the client’s requests.
- The machine is made of high-quality materials, which ensures its reliability, durability and stable operation.
| Technical characteristics | 1 VC H380B | 1 VC H390S | 1 VC H420C | 1 VC H520C | 1 VC H620C |
| Dimensions, mm | 450*470*680 | 500*510*760 | 550*560*780 | 650*660*780 | 750*760*900 |
| Dimensions of the inner chamber (lid protrusion), mm | 380*400*120 | 400*450*170
(50) |
450*510*170
(50) |
540*600*190
(70) |
640*700*190
(70) |
| Seal
length (2 strips), mm |
360 | 380 | 430 | 520 | 620 |
| Heat sealing width, mm | 10 | 10 | 10 | 10 | 10 |
| Volume of a vacuum pump with a copper core, l | 2
(2 sets) |
20 | 20 | 20 | 20
(2 sets) |
| Number of transformers, pcs | 1 | 2 | 2 | 2 | 2 |
| Voltage, V | 220 | 220 | 220 | 220 | 220 |
| Power, kW | 0,98 | 1,8 | 1,8 | 1,8 | 2,9 |
| Vacuum degree, MPa | 0,1 | 0,1 | 0,1 | 0,1 | 0,11 |
| Housing | stainless steel SUS304 | ||||
The company provides full warranty and after-sales service.
