Description
STvega Dicer Sweet Dried Fruits Machine It is used to cut sweet dried fruits such as dried apricots, figs, dates, dried strawberries, kiwi, mango into portions of the required size. Depending on the installed knife, you can cut the product into strips or cubes.
Principle of operation:
The operator stacks the product intended for slicing on a conveyor belt, which feeds it to the cutting knife. In front of the slicing area, a special roller presses the product against the belt, which allows you to fix it for more accurate and high-quality slicing and prevents sticking to the knife. The cutting knife cuts the product into strips or cubes according to the specified dimensions. Next, the cut product is transported by a conveyor belt to containers for finished products or to the next stage of production.
Equipment advantages:
- The conveyor belt is made of food-grade nylon, easy to remove, wash and process.

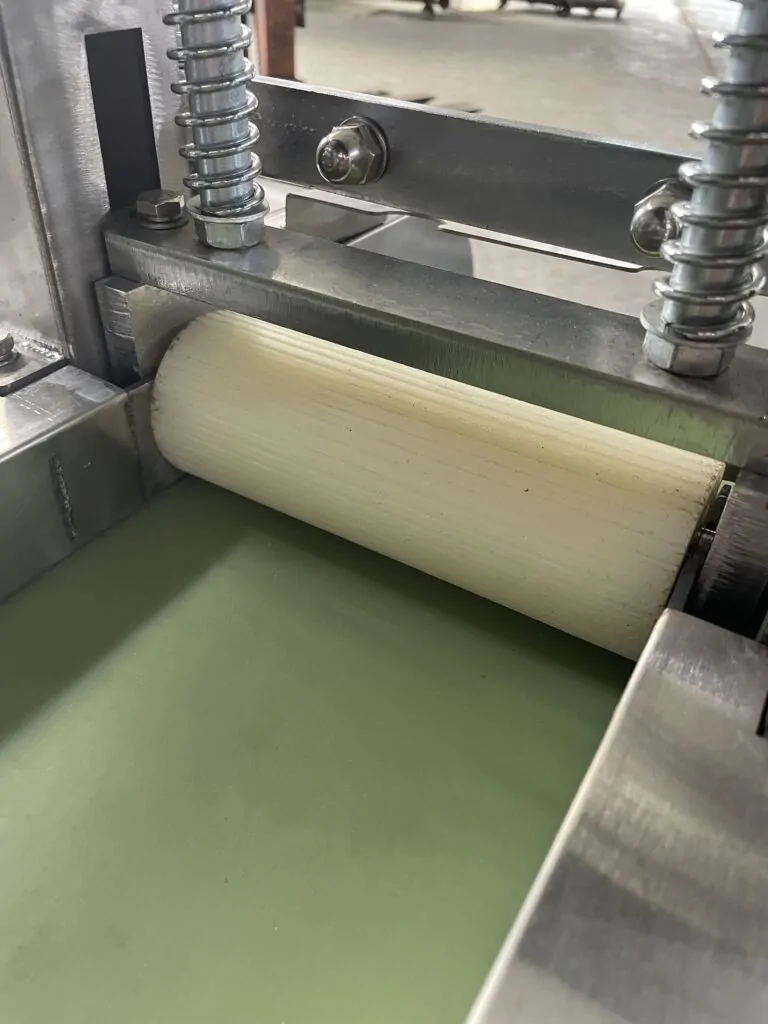

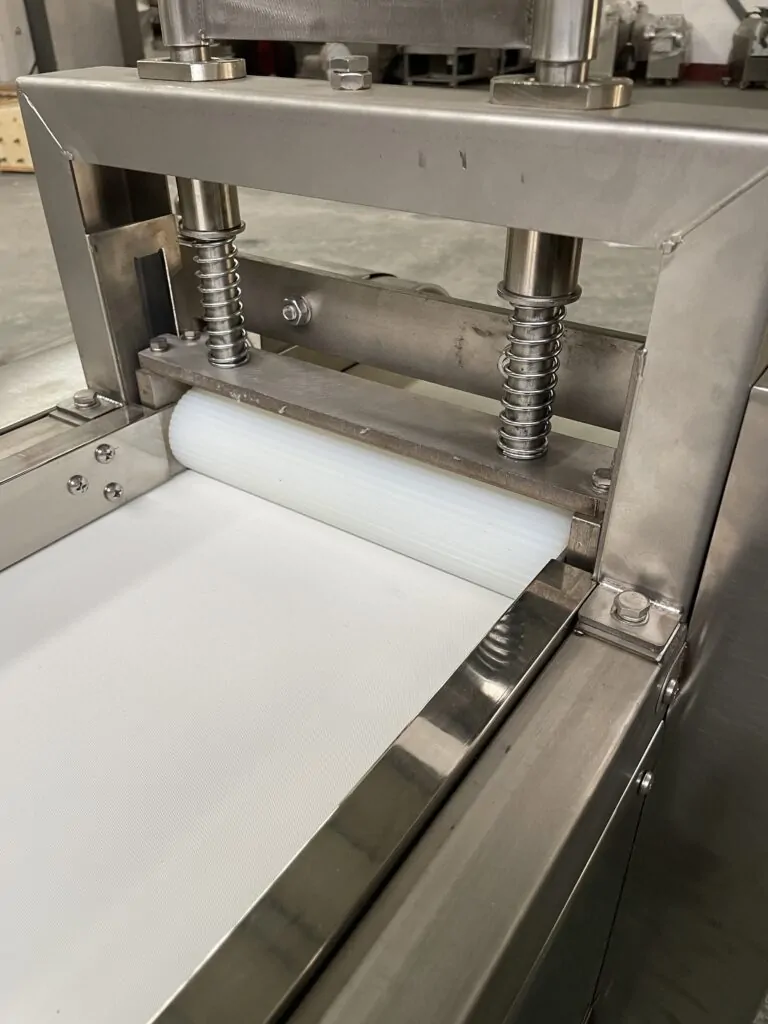

- A special roller in front of the cutting knife presses the product against the tape, thus fixing it and preventing it from sticking to the knife.

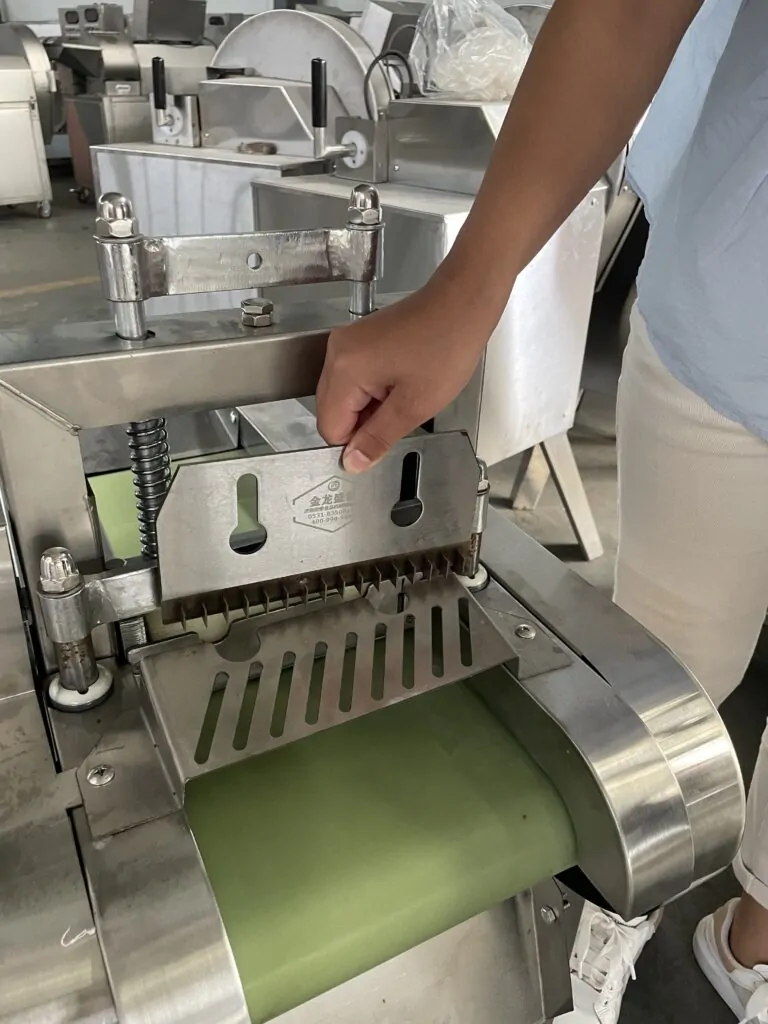

- The shredding size can be adjusted by changing the cutting knife and the speed of the conveyor belt.
- Convenient operation using waterproof mechanical buttons on the outrigger pipe.
- The base of the machine is made of stainless steel (H300, H500) or cast iron (H200), the equipment is durable and reliable in use.
- All parts in contact with the product are made of stainless steel or other materials that meet food safety standards.
| Specifications | H200 | H300 | H500 |
| Size, mm | 900*430*880 | 1300*570*1020 | 1250*790*1050 |
| Tape width, mm | 200 | 295 | 497 |
| Cutting range (strips), mm | 2-25 | 1-30 | 1-30 |
| Cutting range (cubes), mm | 5-25 | 5-30 | 5-30 |
| Productivity, kg/h | 150-600 | 200-800 | 400-1500 |
| Power, kW | 0,75 | 1,5 | 1,5 |
| Voltage, V | 220/380 | 220/380 | 220/380 |
| Material | cast iron frame | Stainless Steel | Stainless Steel |
The company provides full warranty and after-sales service.
