Подавальний елеватор STvega Elevator H200

Description

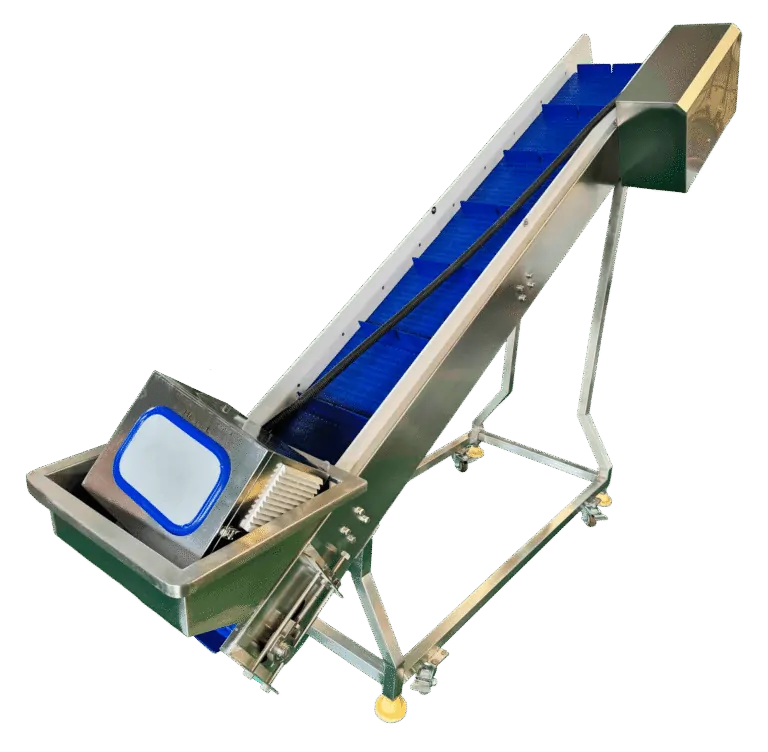

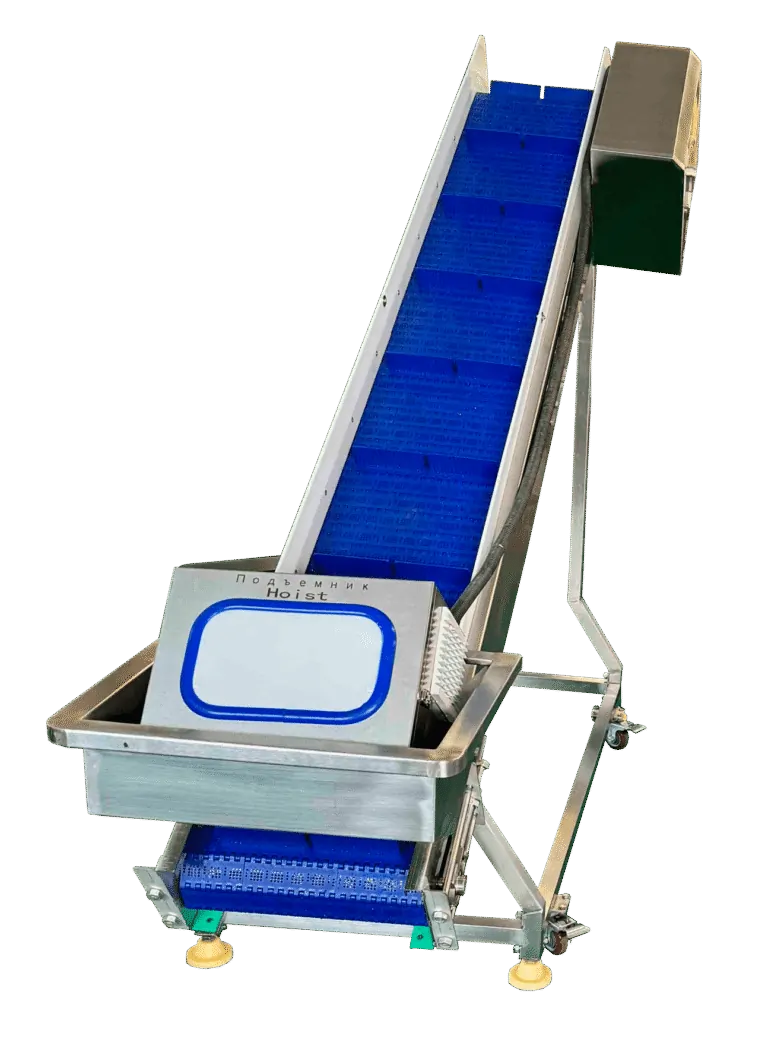

The STvega Elevator H200 is designed to feed the product into the STvega Strip Slicer H3000 centrifugal machine for slicing and shredding vegetables and fruits.The elevator is equipped with a loading hopper, a movable conveyor belt and a speed controller, which allows you to adjust the feed rate, has a wheelbase for moving around the workshop, the wheels are equipped with a locking mechanism, the electronic part is isolated in a remote outdoor unit.

Principle of operation:

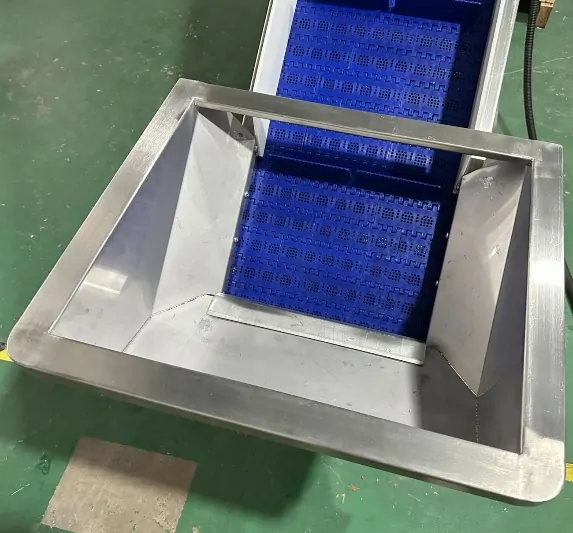

Vegetables or fruits intended for transport are loaded into the receiving hopper. The conveyor belt continuously moves and lifts the product towards discharge on the centrifugal slicing and shredding machine. The operator, using the speed controller located on the remote control unit panel, adjusts the desired speed of the conveyor.

Equipment advantages:

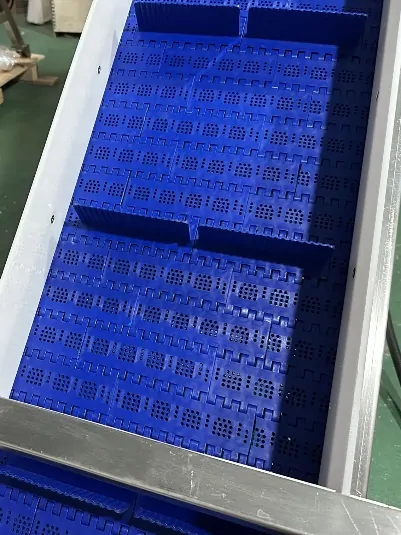

• The conveyor belt is made of polypropylene, easy to remove, wash and process.
• Smooth adjustment of the speed of the conveyor belt using the speed controller right during the operation of the conveyor.
• The elevator is made of SUS 304 stainless steel, except for the motor and electrical part.

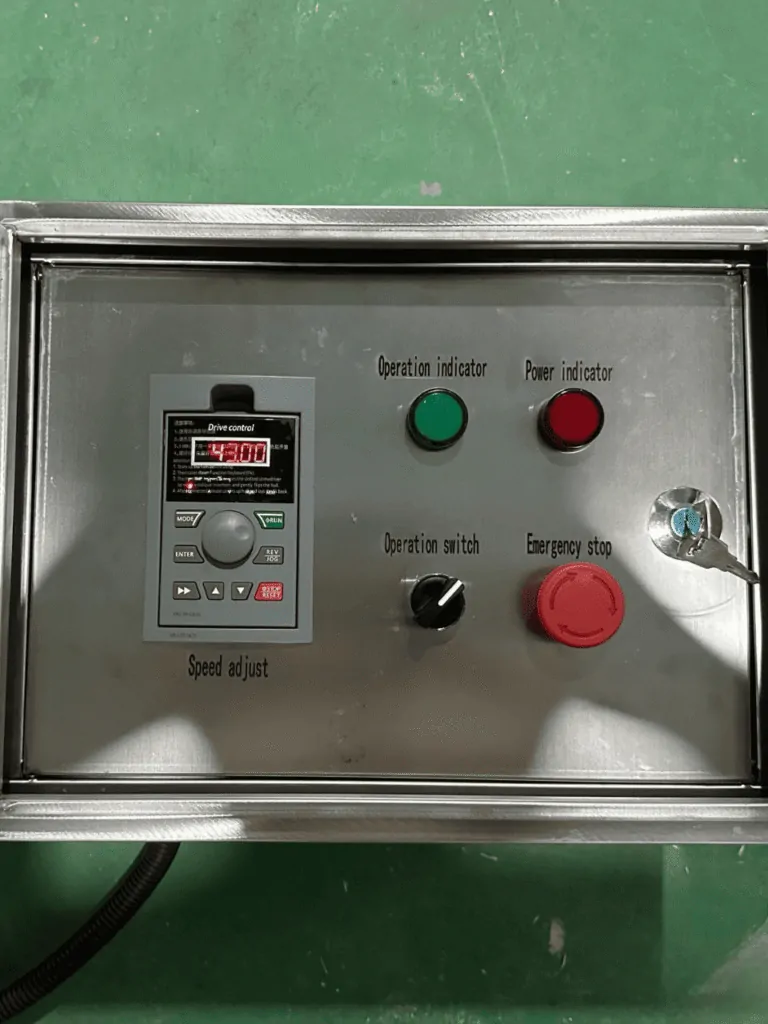

• Convenient and intuitive operation using an external remote unit.
• It is possible to adjust the height of the elevator, the width of the conveyor belt, and the dimensions of the receiving hopper individually for the client.

The company provides full warranty and after-sales service.
