Description
Performance depends on the heat treatment time and the length of the bath. Electricity or steam is used as a heater (energy source for heating water) to raise the temperature inside the water tank. The blanching bathtub has a thermal insulation structure made of sandwich panels, and the length of the bathtub is made according to the required performance.
The blanching agent has the functions of quickly removing greens, inhibiting enzymes, protecting the color and timely dehydration and cooling, which allows you to preserve the original natural color of fruits and vegetables.
Principle of operation

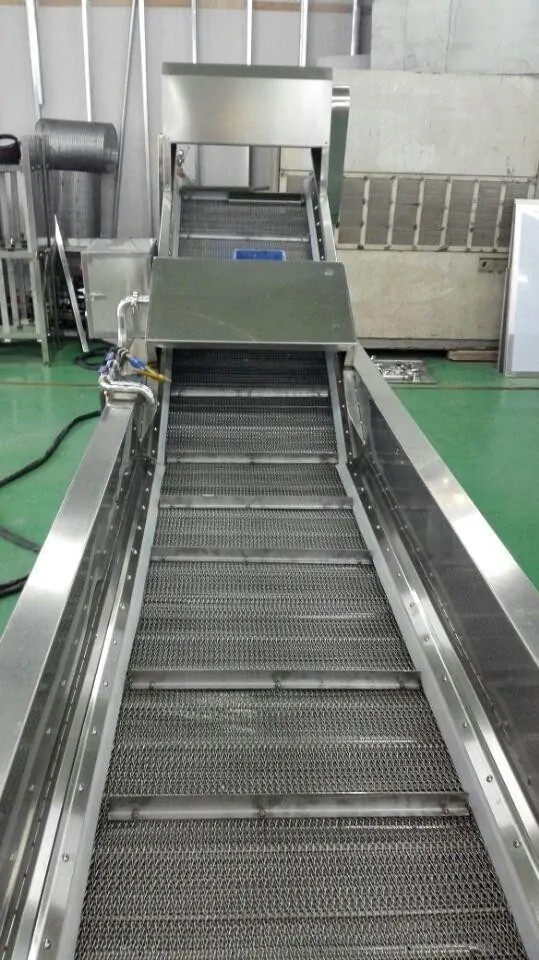

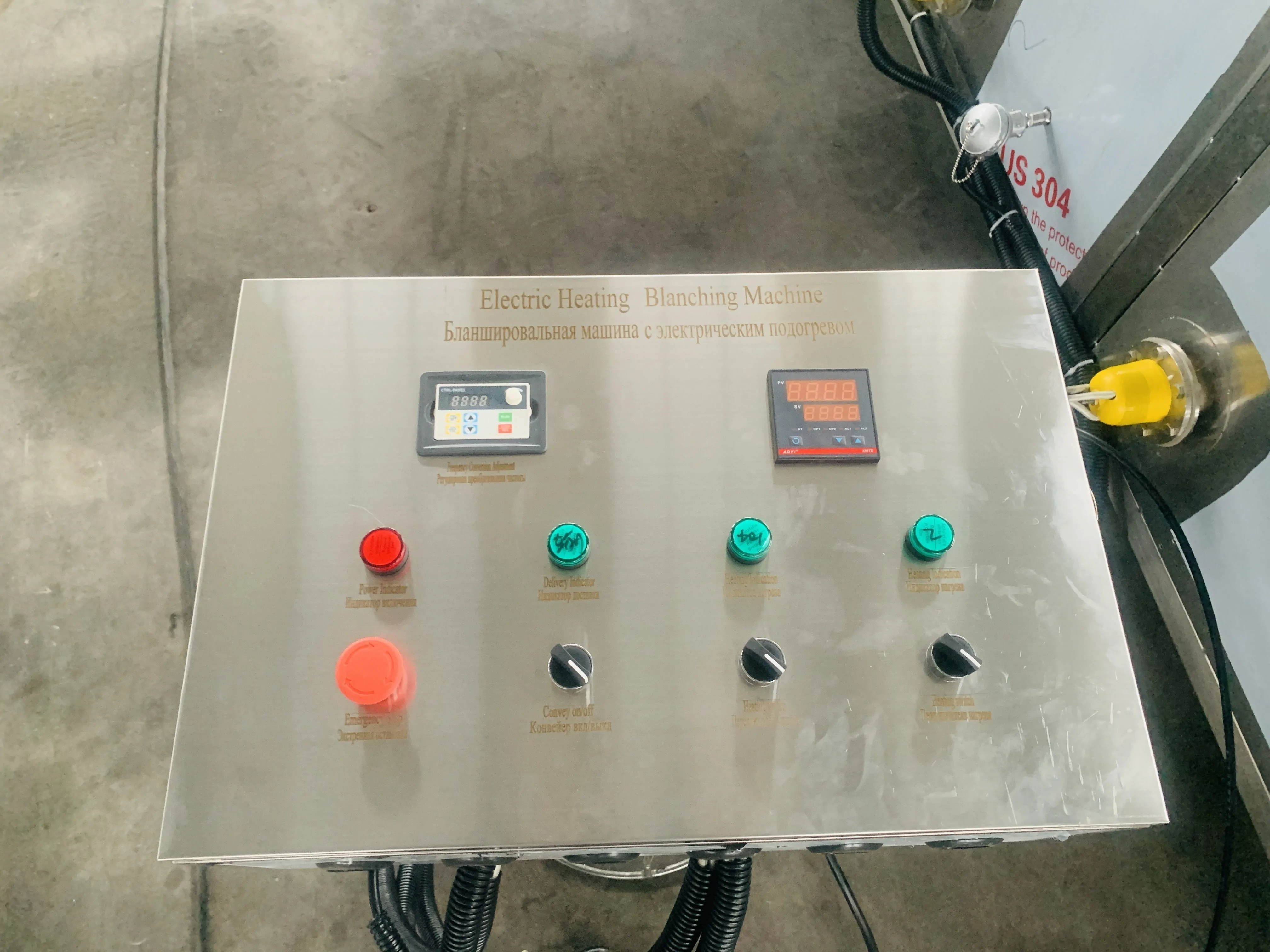

The product is loaded into the bath and enters the conveyor-type tunnel with a conveyor belt, where the product is scalded under the influence of steam or boiling water. The conveyor belt continuously moves and lifts the product towards unloading to the next stages of technological processing. The operator uses a frequency converter to adjust and adjust the desired speed of the conveyor belt.
There is a removable conveyor along the entire length of the machine for easy cleaning.
|
Specifications |
ABS 2500 |
ABS 3500 |
ABS 4600 |
|
Dimensions, mm |
2500*1350*1320 |
3500*1350*1320 |
4600*1100*1250 |
|
Heating type |
Electric/Steam |
Electric |
|
|
Heating temperature, °C |
25-100 (adjustable) |
0-100 |
|
|
Voltage, V |
380 |
380 |
|
|
Frequency, Hz |
50 |
50 |
|
|
Power, kW |
60 |
96 |
41 |
|
Вага, кг |
380 |
650 |
500 |
|
Material |
stainless steel SUS 304 |
||
The company provides full service and warranty service.
