Машина для миття ящиків (тари) STvega Barrel Box L8500

Description

The STvega Barrel Box L8500 machine is designed for efficient and automated washing of various plastic containers. A two-stage cleaning system allows you to efficiently treat a contaminated surface, and a closed water cycle system allows you to significantly reduce water consumption.

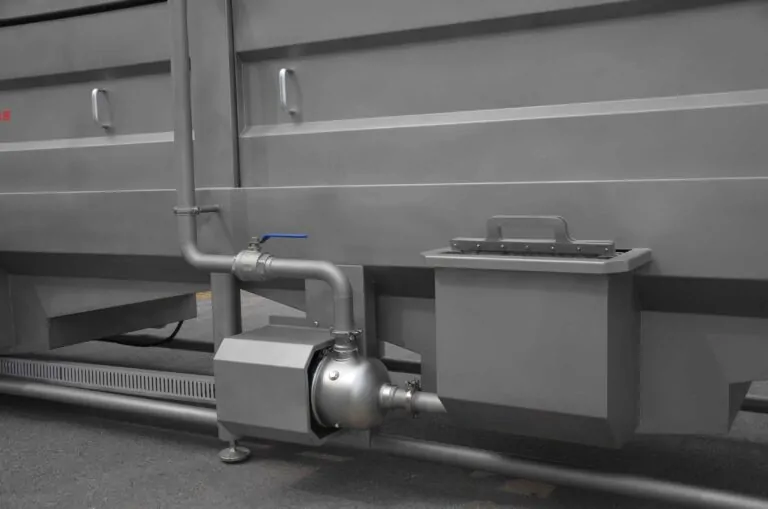

The machine is equipped with pumps and containers with nozzles for spraying water and cleaning solution, special handrails for fixing containers when passing through the hopper, a remote control panel, with which you can adjust the water supply, pressure and speed of the conveyor belt.

Principle of operation:

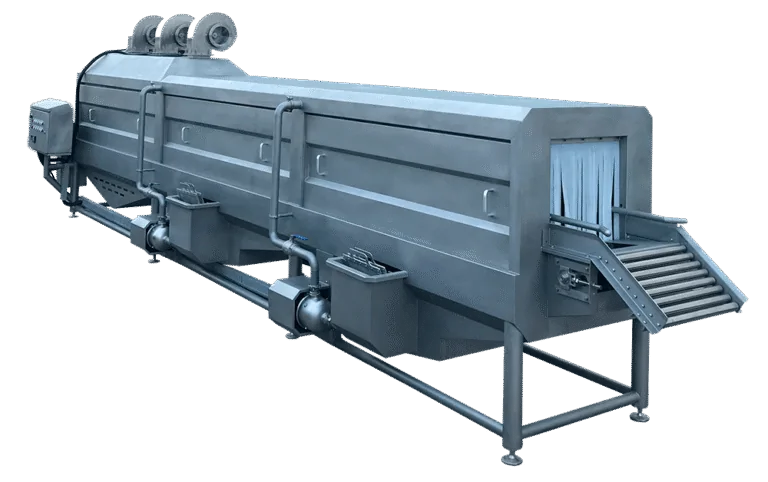

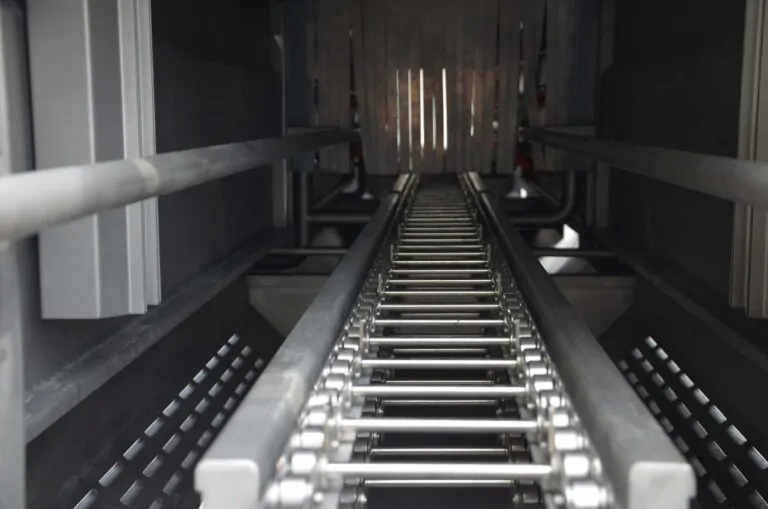

This equipment is made in the form of a tunnel hopper, divided into three sections, in which the surface of the cleaned container is treated. The contaminated container is placed by the operator on a chain conveyor belt, along which it is sent for primary processing.

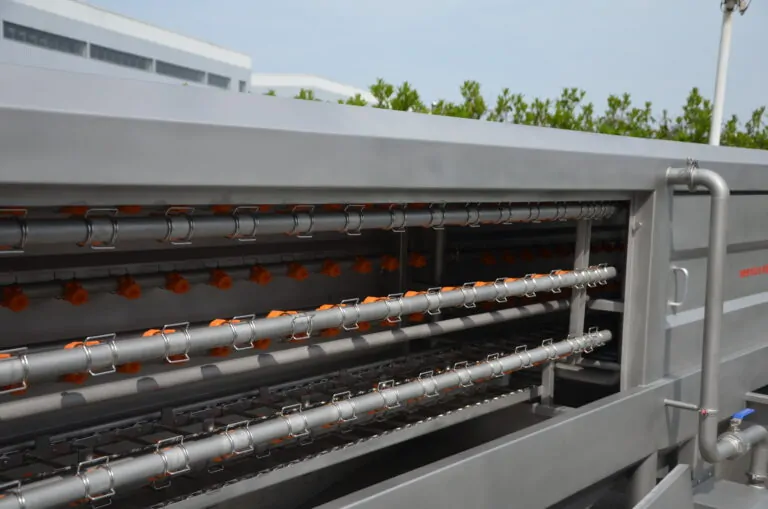

The first stage of processing occurs due to the supply of a high-pressure washing solution through a system of nozzles. The nozzles are located on different sides along the entire perimeter of the tunnel section, which makes it possible to qualitatively process the container from all sides.

The second step is to rinse the containers with warm water from the detergent solution through a system of nozzles. At this stage, the container is sterilized and re-cleaned due to the flow of hot water. In both stages, the used water passes through the filter system and enters the tank for further use.

At the third, final stage, the cleaned container is blown with air to remove residual water from the outer surface of the boxes. There is no hot air drying function, the container is blown with the air that is in production.

Note: in a model with a steam type of heating, a steam generator with a capacity of 300 kg/h is required for stable operation.

Equipment advantages:

• Effectively cleans containers of any degree of contamination, thanks to nozzles placed on different sides around the entire perimeter of the tunnel, there are no dead zones for cleaning.
• Railing guides are installed along the entire length of the tunnel hopper for fixing containers.
• The closed cycle of water use allows you to significantly reduce water consumption and increase the efficiency of the machine.

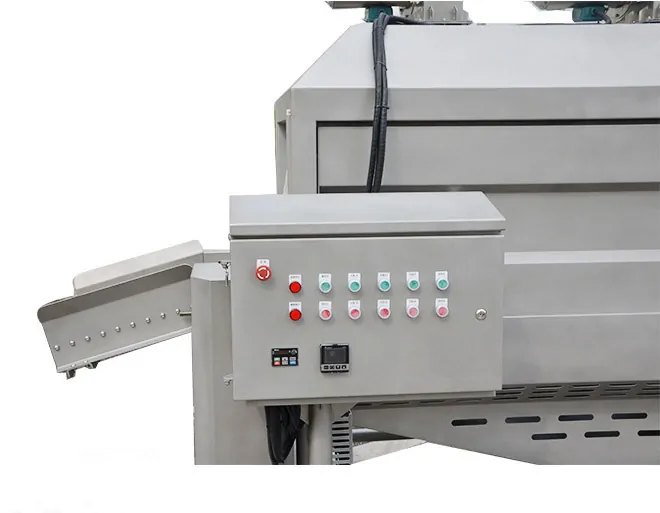

• With the help of a remote control panel, you can adjust the water supply, pressure and speed of the conveyor belt.
• The machine is made of SUS 304 stainless steel for maximum service life and fully complies with food safety standards.

The company provides full warranty and after-sales service.
