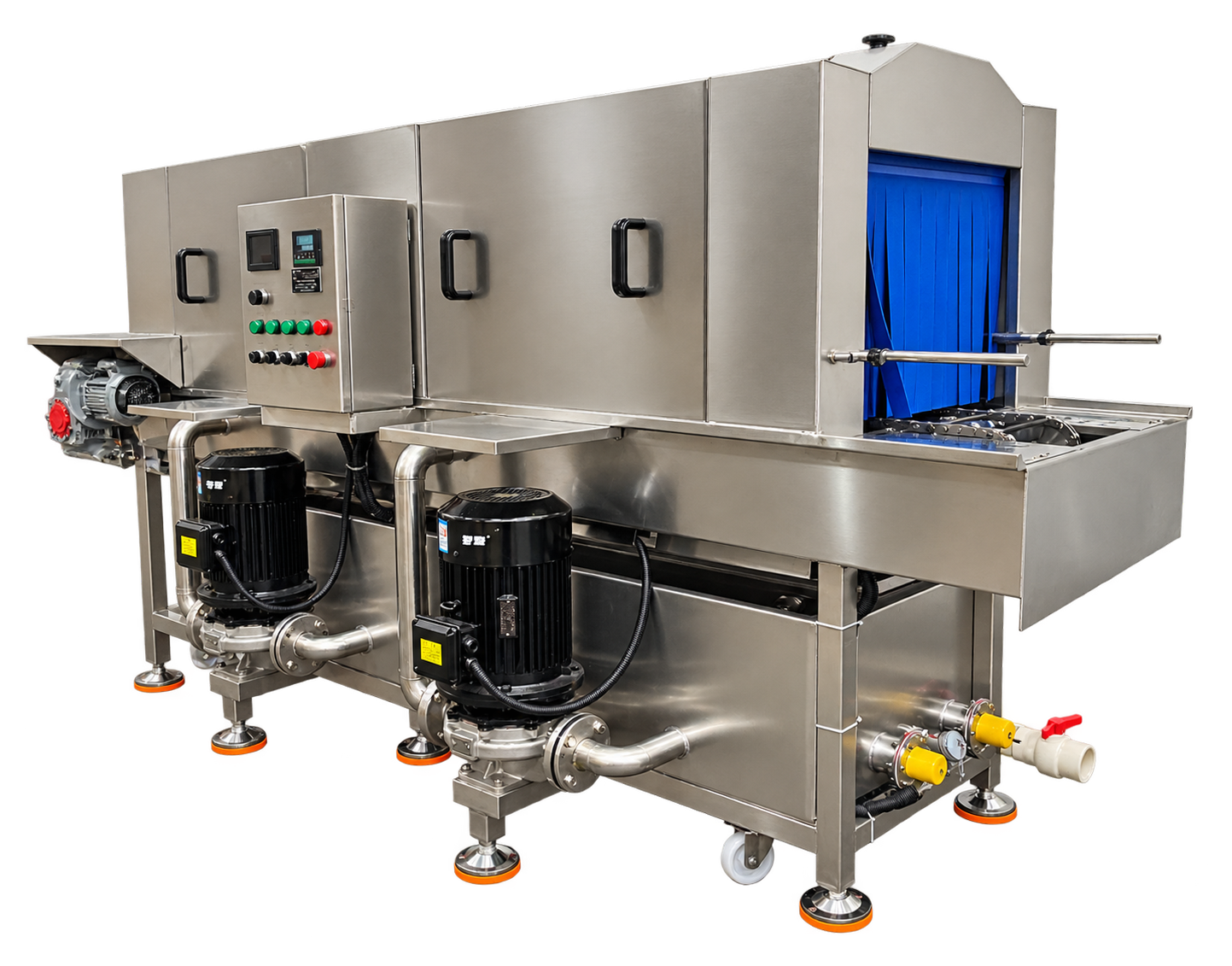

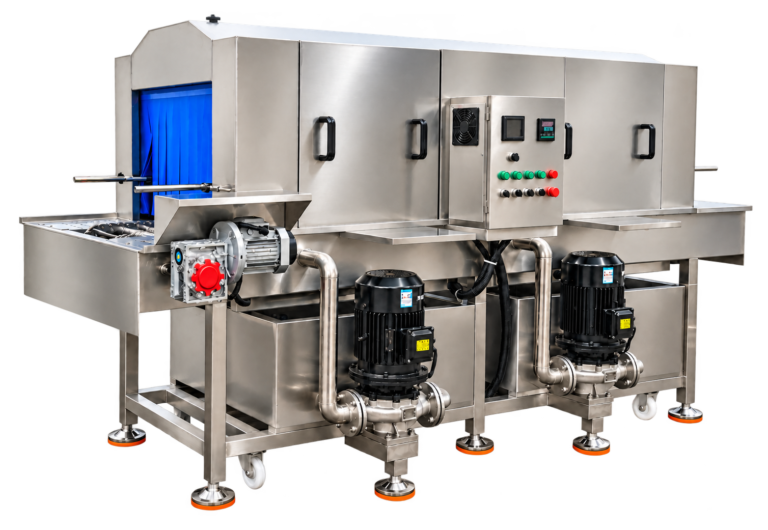

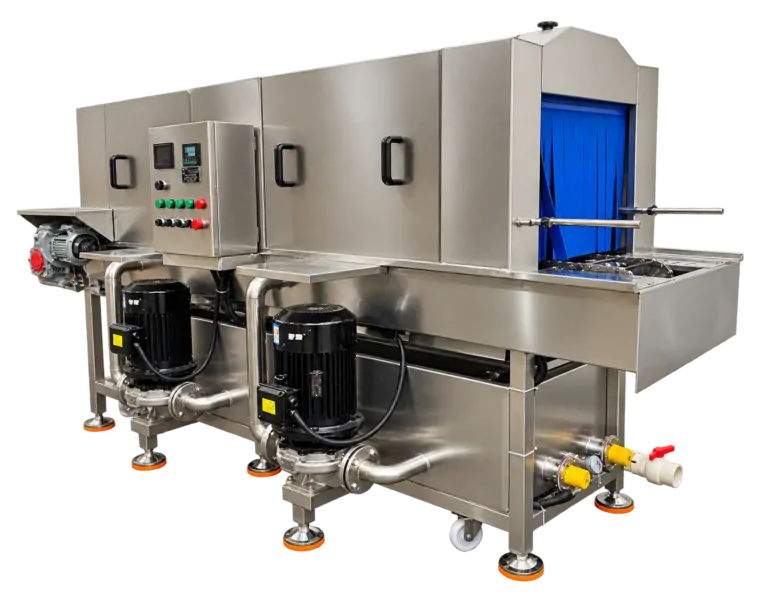

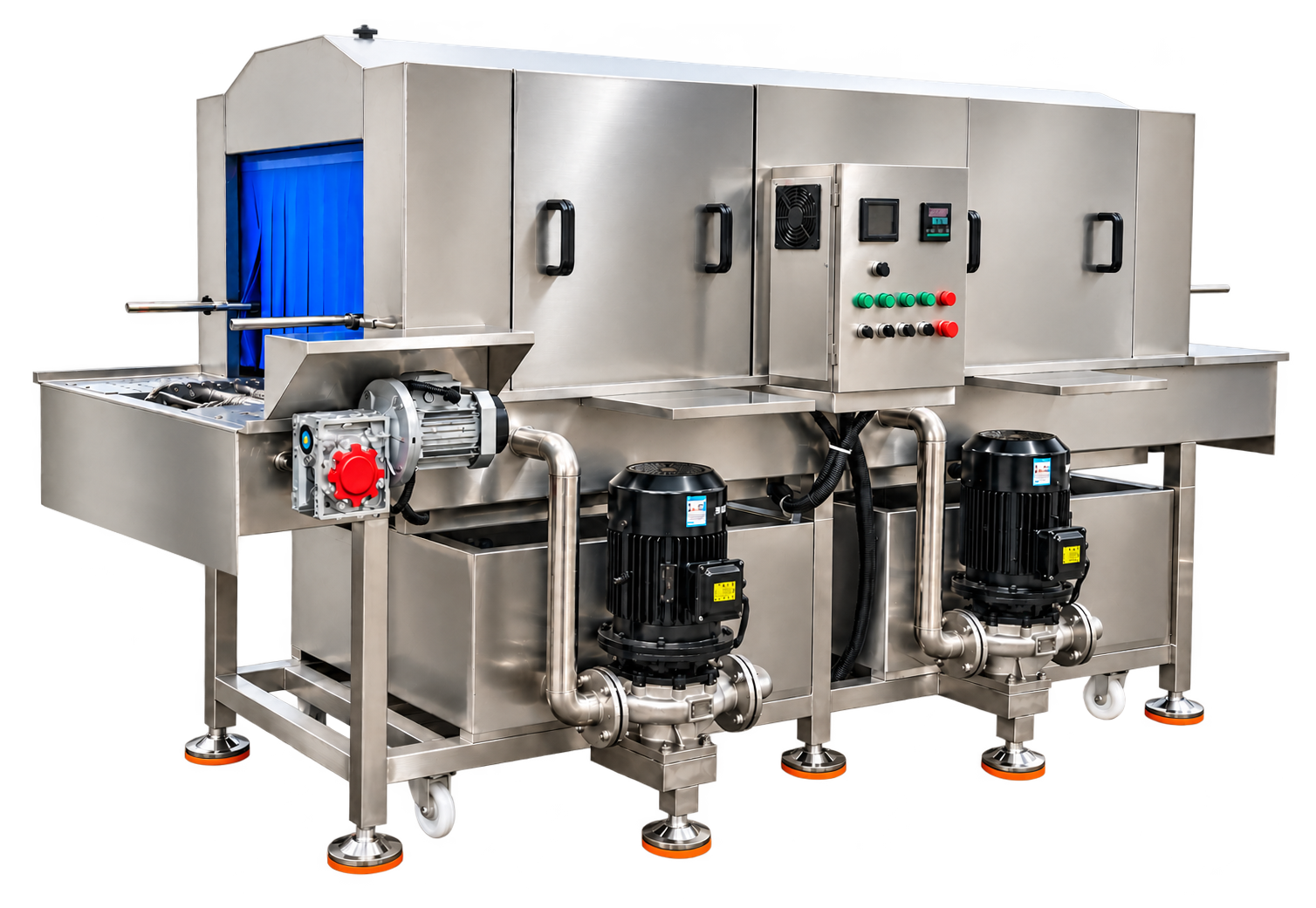

STvega Barrel Box H300 Food Container Washing Machine

The STvega Barrel Box H300 professional tunneling machine is designed for automated sanitization of recyclable plastic containers, including trays, boxes and baskets used in food production. fatty and protein products in the meat, dairy and confectionery industries.

Principle of operation:

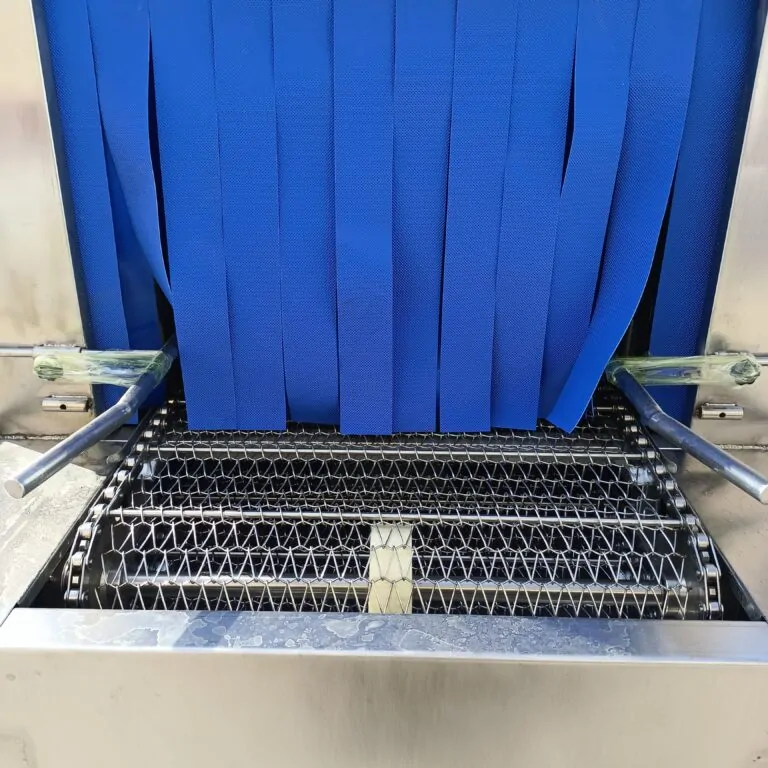

The contaminated container is installed by the operator on a chain conveyor belt, which smoothly moves it through a closed tunnel hopper to undergo a full cleaning cycle. The process is divided into two main functional sections: in the first section, dirt and grease are actively removed using a hot washing solution, which is heated by a powerful 20 kW heating element and supplied under pressure through an extensive system of nozzles. In the second section, the container is finally rinsed with clean running water to finally remove the remnants of contaminants and chemicals. After leaving the tunnel, the completely cleaned container enters the unloading compartment, where it is removed by the operator for further use in the production cycle.

Equipment advantages:

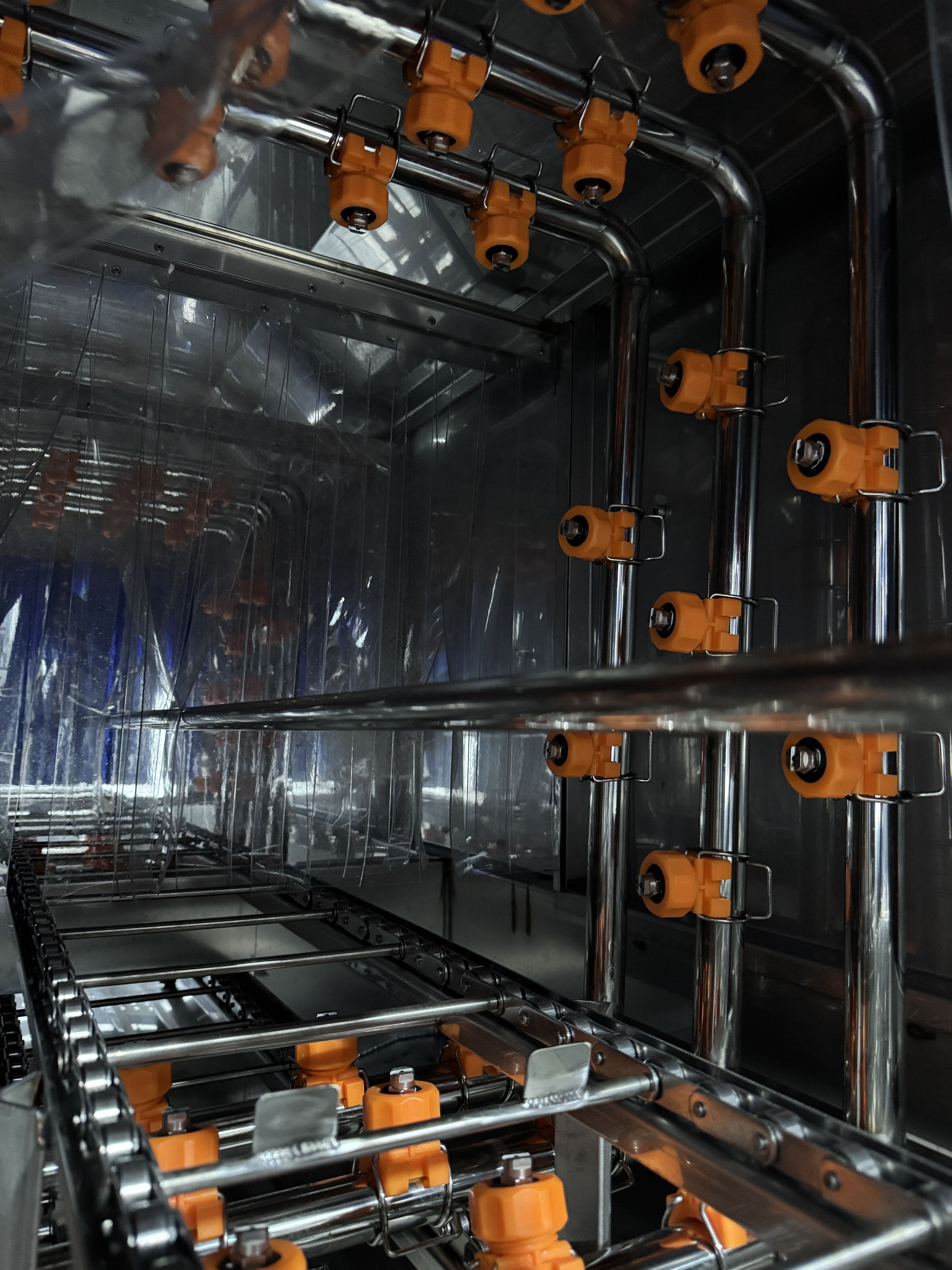

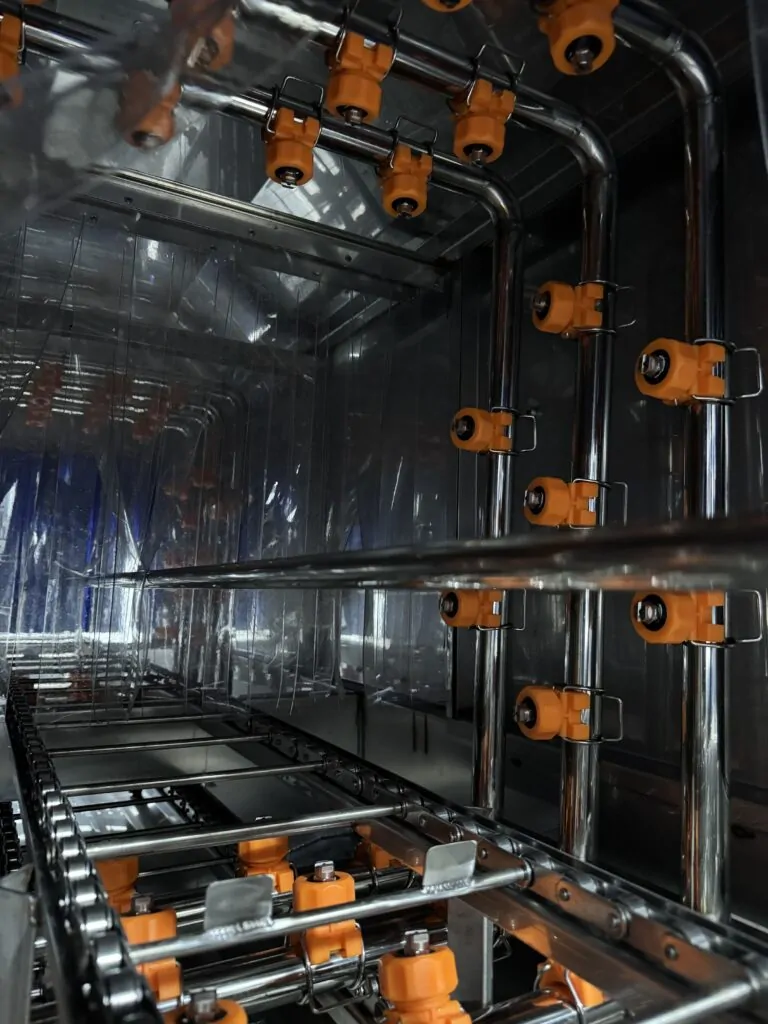

• The placement of nozzles around the entire perimeter of the tunnel ensures effective cleaning of containers of any level of complexity and completely eliminates the appearance of “dead zones” during processing.
• The introduction of a closed-loop water use system can significantly reduce the overall consumption of resources and significantly increase the economic efficiency of the machine.
• The presence of an intensive water heating function, combined with the possibility of adding detergents, guarantees high-quality breakdown of fats even on very dirty surfaces.

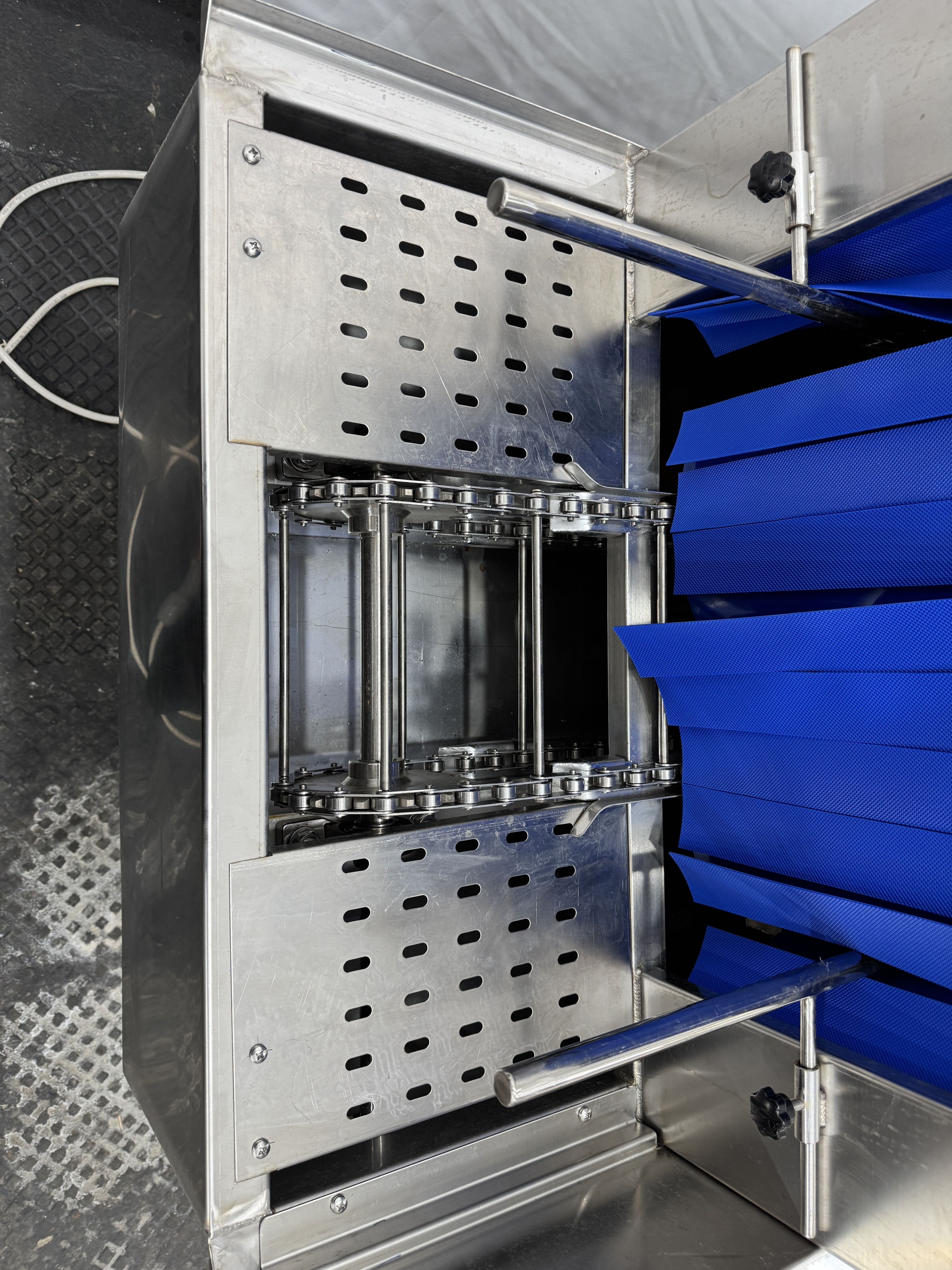

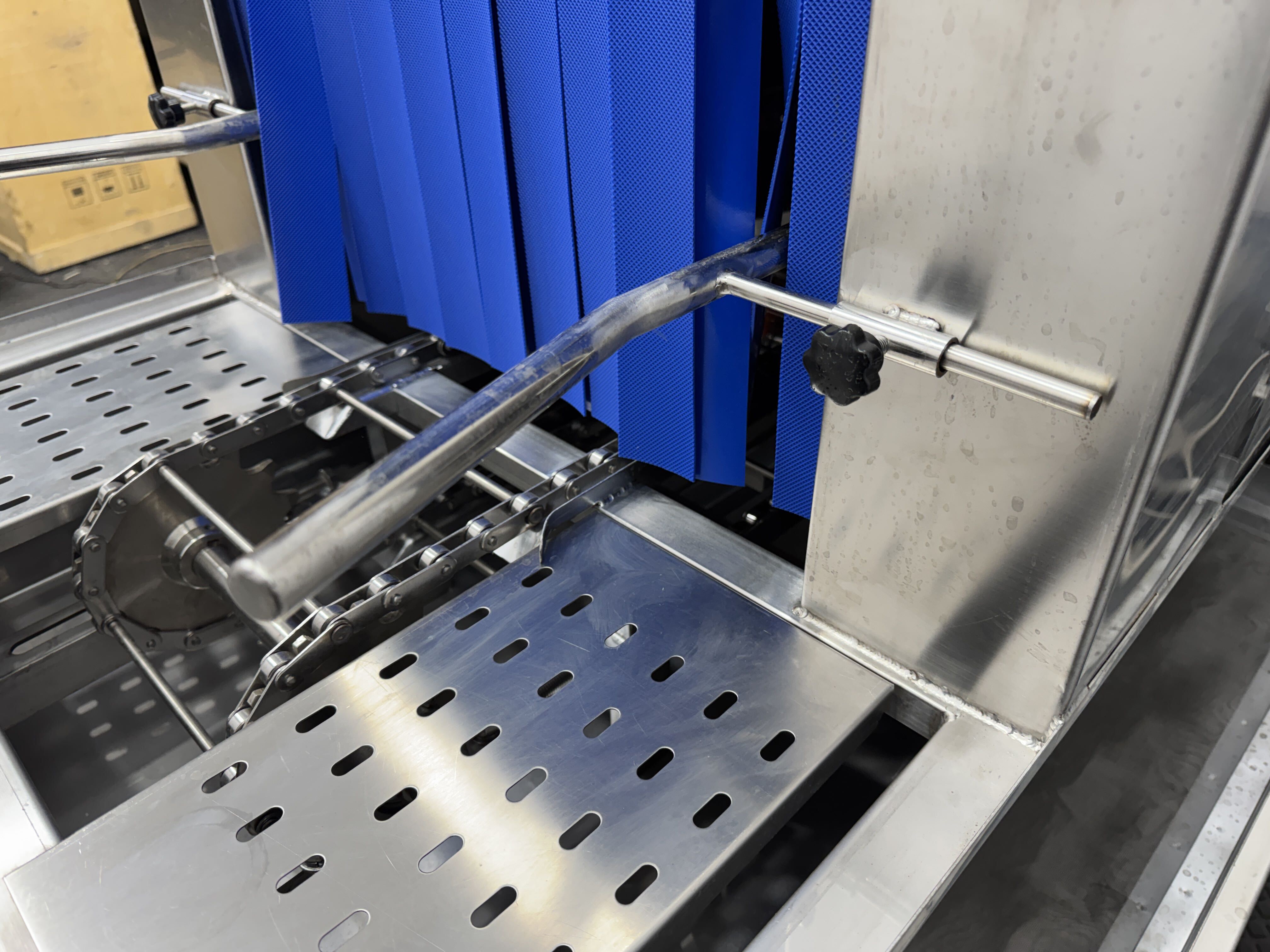

• Special adjustable railings are provided along the entire length of the tunnel, which allow you to securely fix containers of different sizes and prevent them from shifting under water pressure.
• The body and all key components of the equipment are made of high-quality SUS 304 stainless steel, which guarantees the durability of the machine and its full compliance with food safety standards.
