Лінія для нарізки солодощів STvega Line Dicer Sweet Products H100

Description

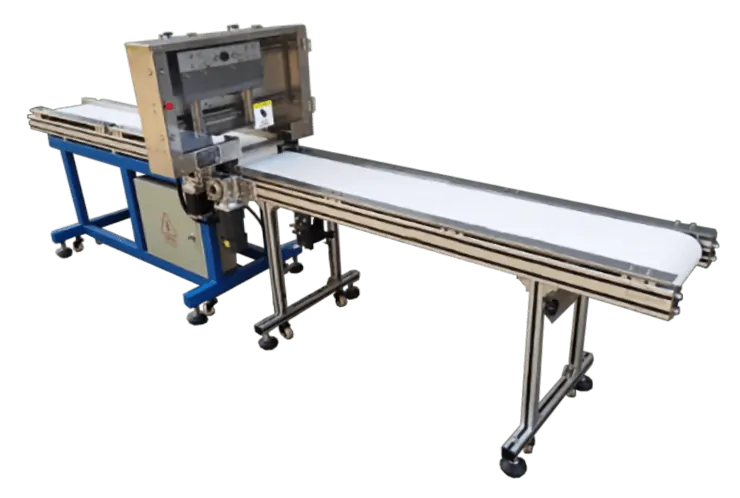

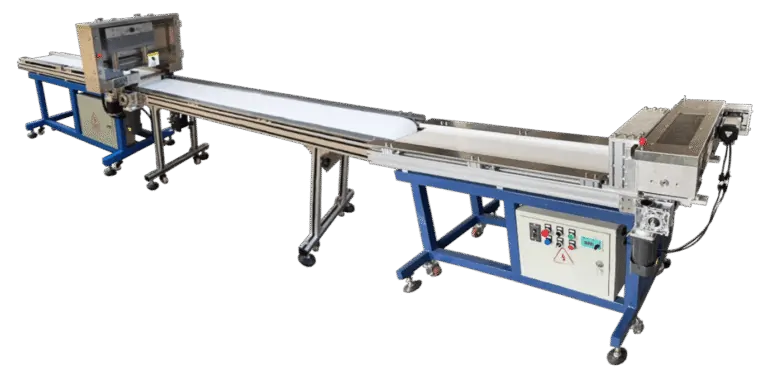

The STvega Line Dicer Sweet Products H100 is designed for portioning sweets (baklava, marshmallows, cookies, grated pie, waffles, halva) by cutting them into strips and slices of the desired size. The complex consists of two machines and, if necessary, can be additionally equipped with a diverter conveyor for unloading finished products in accordance with the client’s terms of reference.

Principle of operation:

The product is fed to the conveyor belt of the first machine, where it passes through a set of fixed disc knives that perform longitudinal cutting into strips. The cutting width is determined by the distance between the knives and is mechanically adjustable. After that, the product enters the assembly line of the second machine. To improve positioning accuracy, the conveyor can be equipped with special stoppers (optional) that form separate sections and ensure a stable position of the product before cross-cutting.

Next, the product enters the processing area, where a guillotine knife cuts it across into portions of a set size with cyclic vertical movements. This principle of operation guarantees a uniform, clean and neat cut, regardless of the density of the product. The CNC control system allows you to adjust the speed of the knife and portioning parameters.

Finished cut products are fed into containers or can be directed to an additional outlet conveyor for further processing (the installation of the conveyor is optional).

Equipment advantages:

• Special stoppers on the conveyor allow the product to be precisely fixed before cutting, reducing displacement and loss of raw materials.
• The rotating knife with circular reciprocating movements ensures a clean and even cut, even for products of different hardnesses.
• The adjustment of the knife speed and slicing size is done using CNC, which allows you to adapt the machine to a specific product.
• The design makes it easy to integrate the machine into the production line with additional conveyors for automated product removal.
• All elements in contact with the product are made of stainless steel, which guarantees the durability of the equipment and compliance with food standards.
