Description

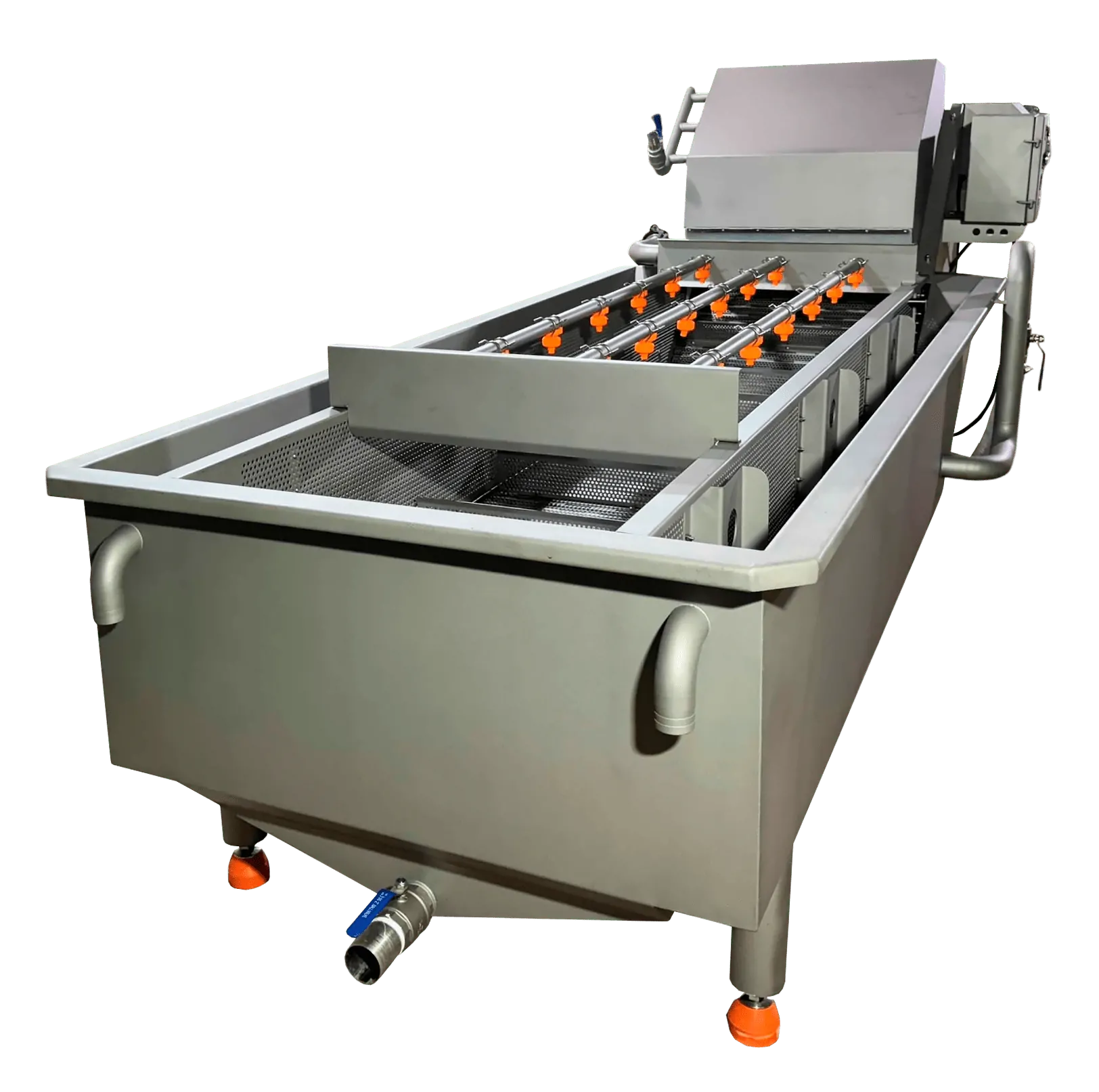

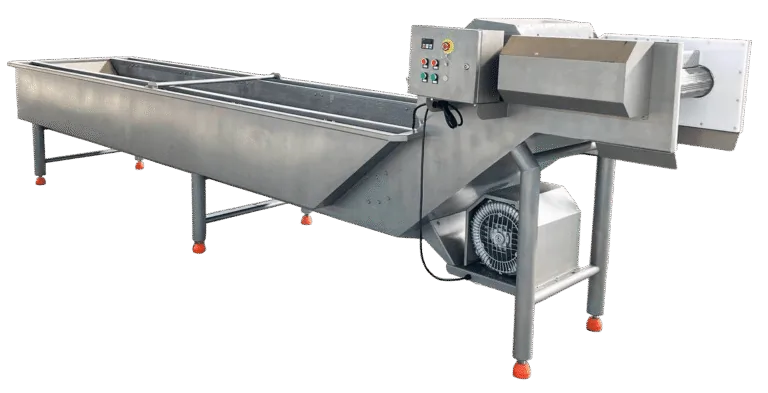

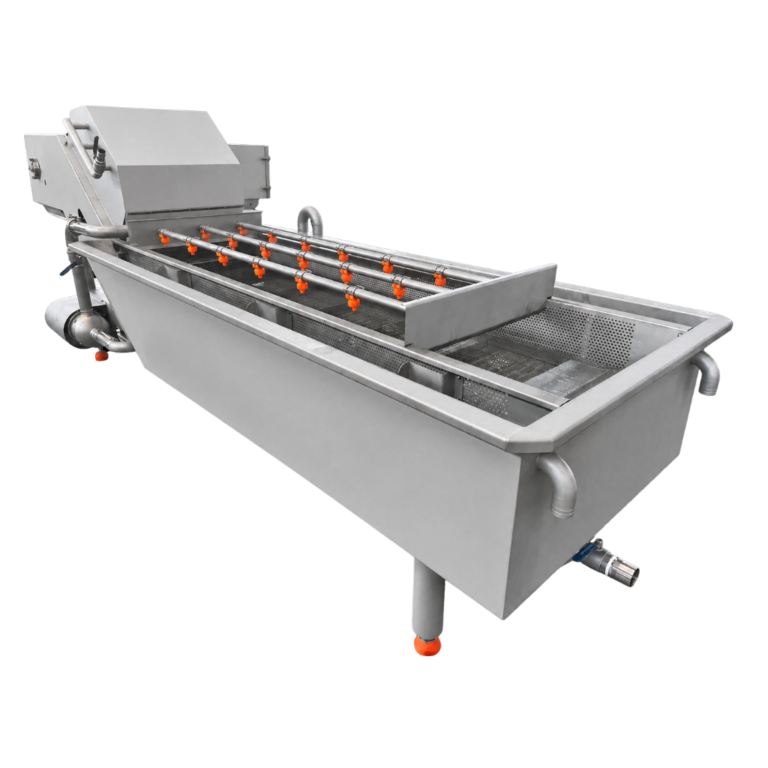

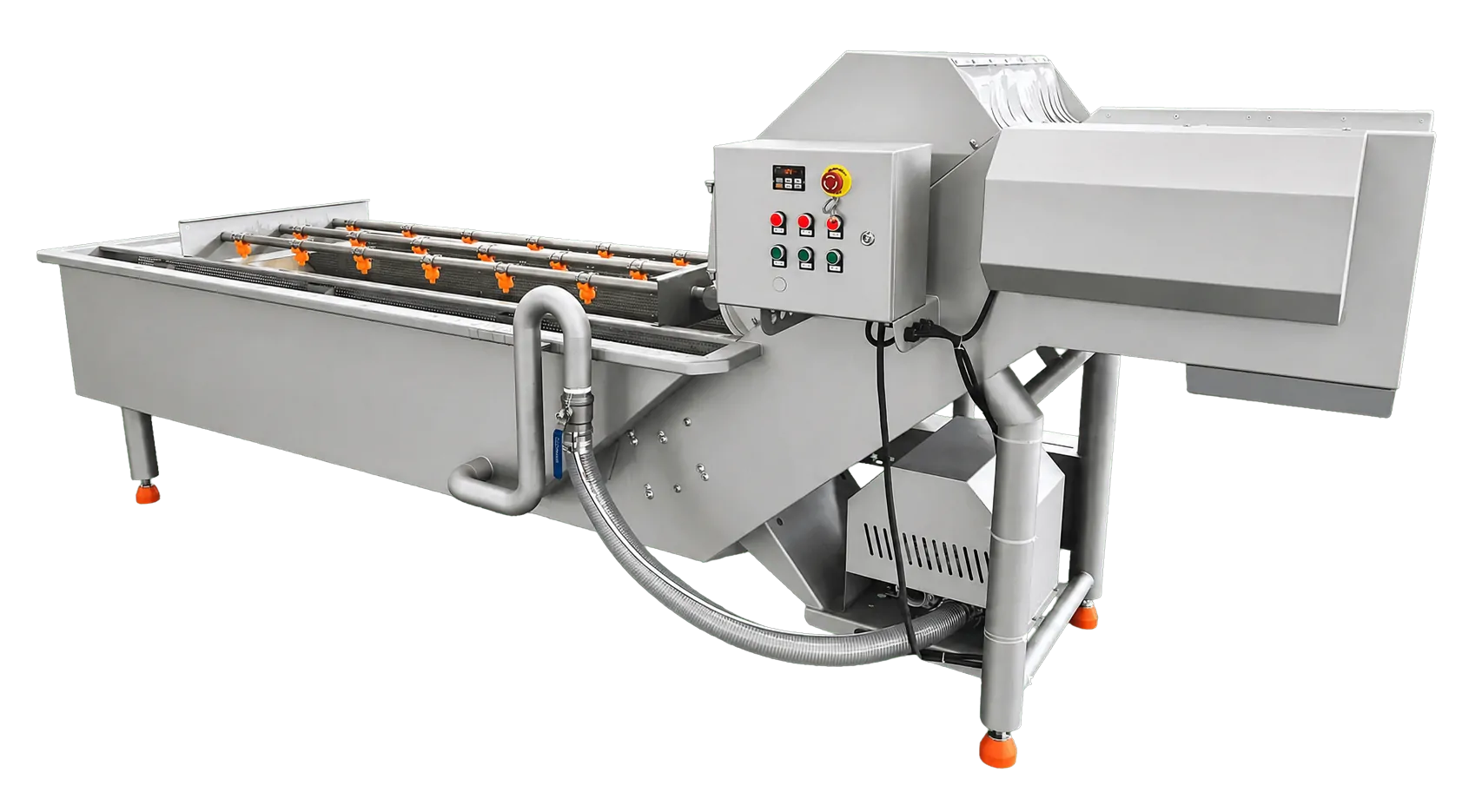

The STvega BW L3000/4000/5000/6000 bubble bath is designed for delicate washing of lettuce, berries, vegetables and fruits in a water bath without damaging the product. The bathtub can also be used to wash and cool various seafood, fruits and vegetables after heat treatment, such as blanching.
Principle of operation:
The principle of operation of the equipment is based on the supply of air from the bottom of a bathtub filled with water. In the washing area, rising air bubbles act on the product, creating a rotational movement and affecting the surface from all sides. In addition, a directional water supply is carried out, which forms a flow and ensures the movement of the product through the bath. For the final rinse, washer nozzles are installed above the conveyor belt.

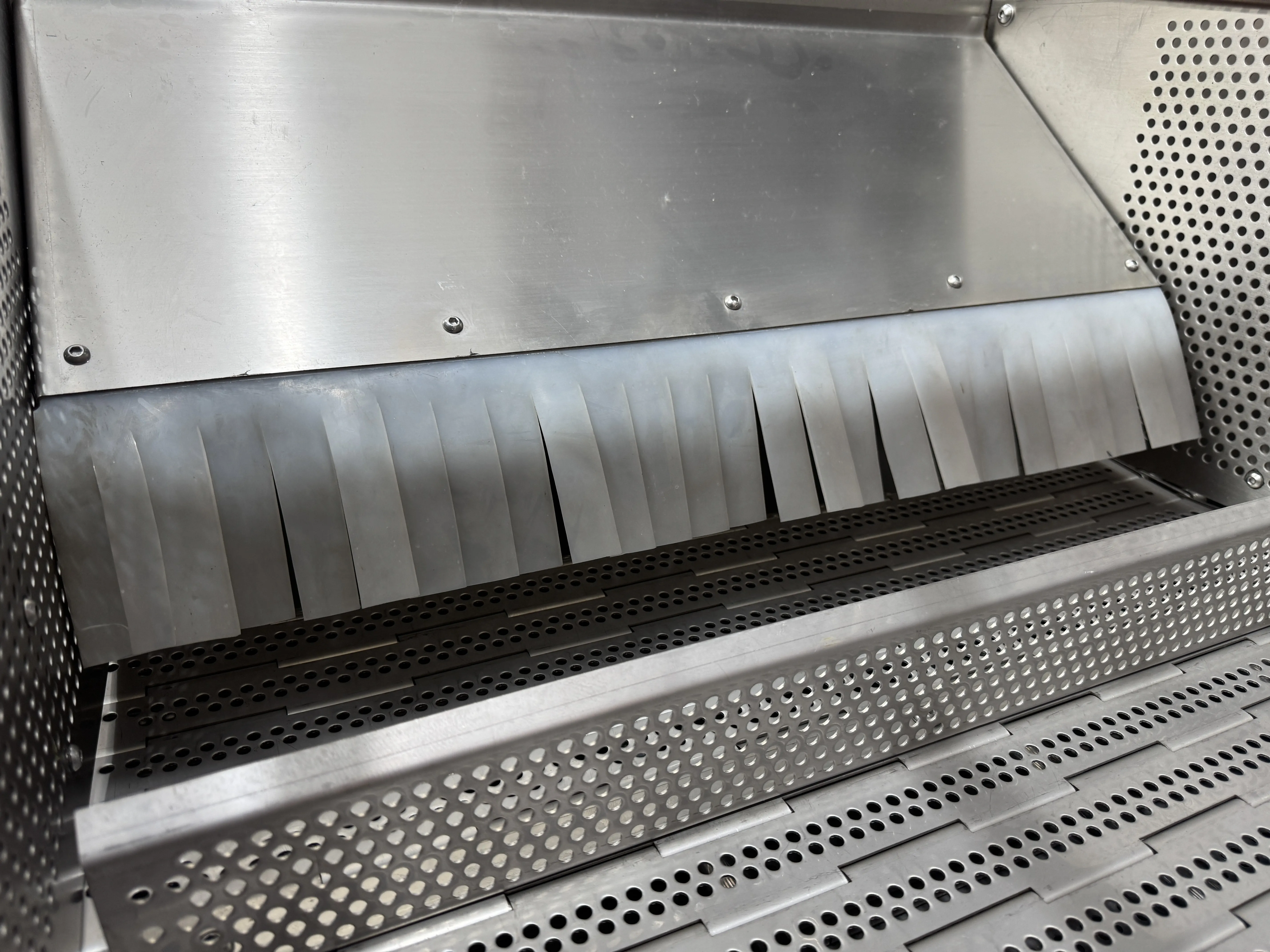

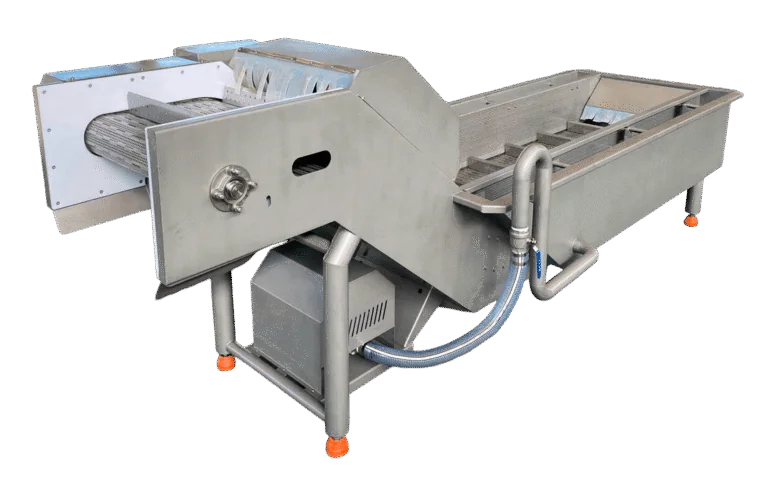

The speed of the tape is adjusted by the operator using a frequency converter. To unload the product, a conveyor is used, the belt of which, at the customer’s choice, can be made of ABS plastic, stainless steel or special rubber. If necessary, transport ridges of different heights can be installed on the belt – depending on the type and size of the product.
Equipment advantages:
- Thanks to the bubbling process, delicate washing is ensured without damaging the product.
- It is possible to supplement the bathtub with nozzles along the entire length for better flushing.

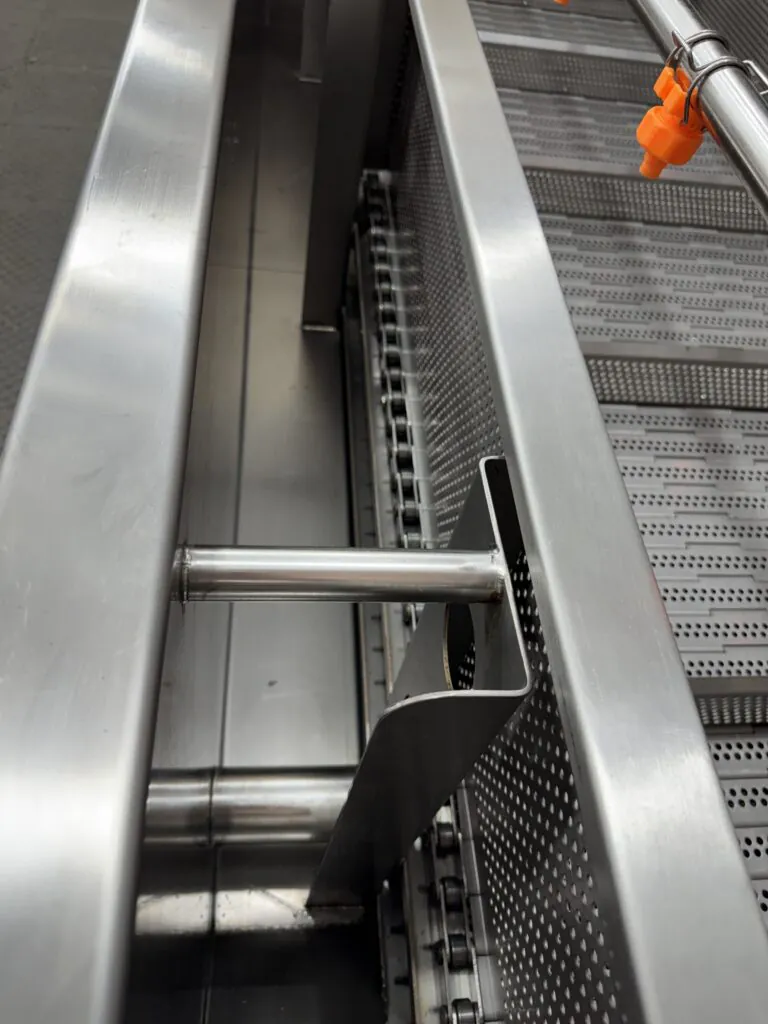

- The conveyor belt runs along the entire length of the bath, contributing to the full rotation of the product, it is moisture resistant and has a special design for the effective lifting of the product out of the water.
- The speed of the conveyor belt is adjusted during operation by a frequency converter.

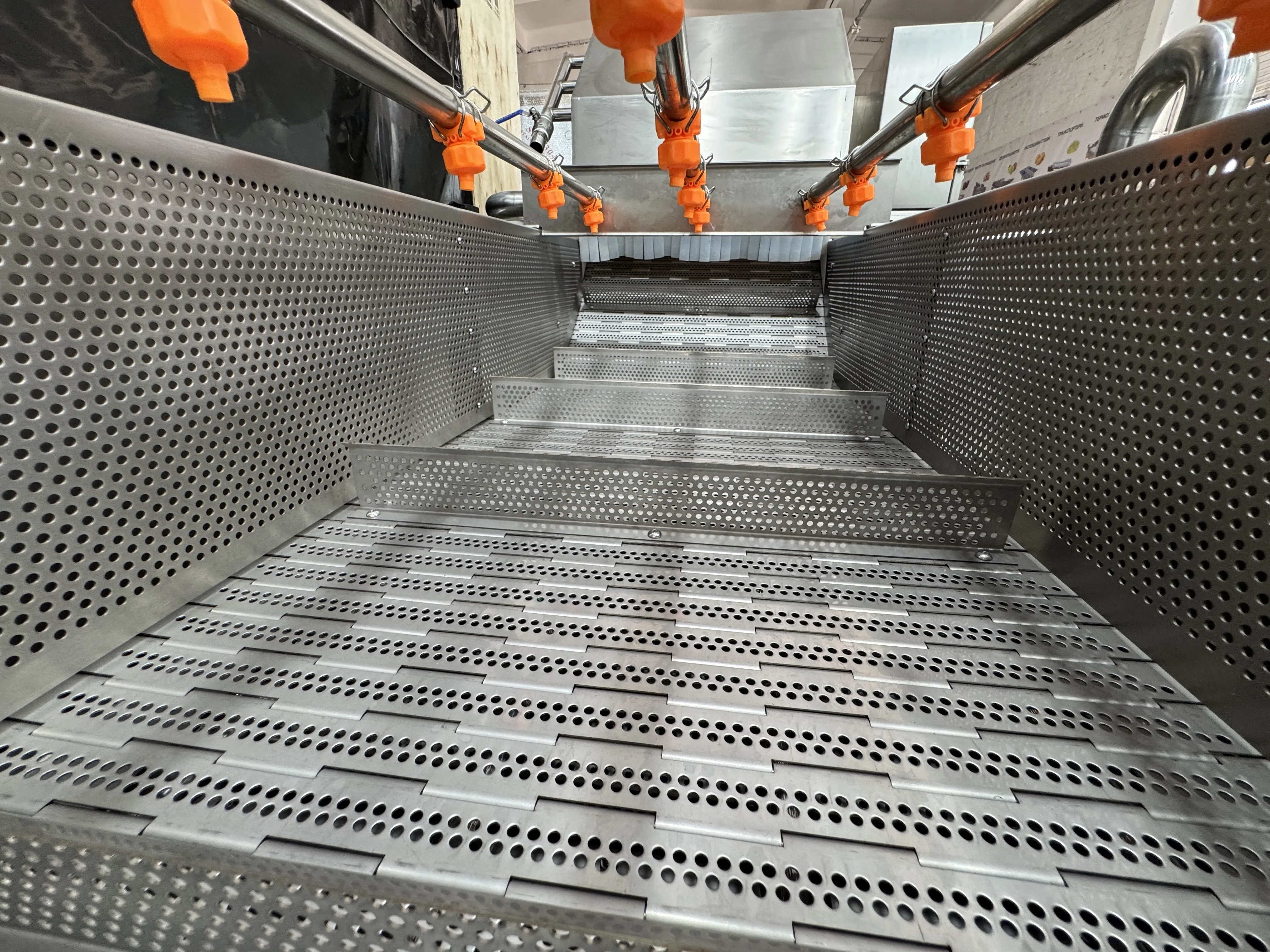

- Washer nozzles provide additional cleaning of the product at the outlet of the bath.
- The bathtub is made of high-quality SUS304 stainless steel, which guarantees its durability and corrosion resistance.

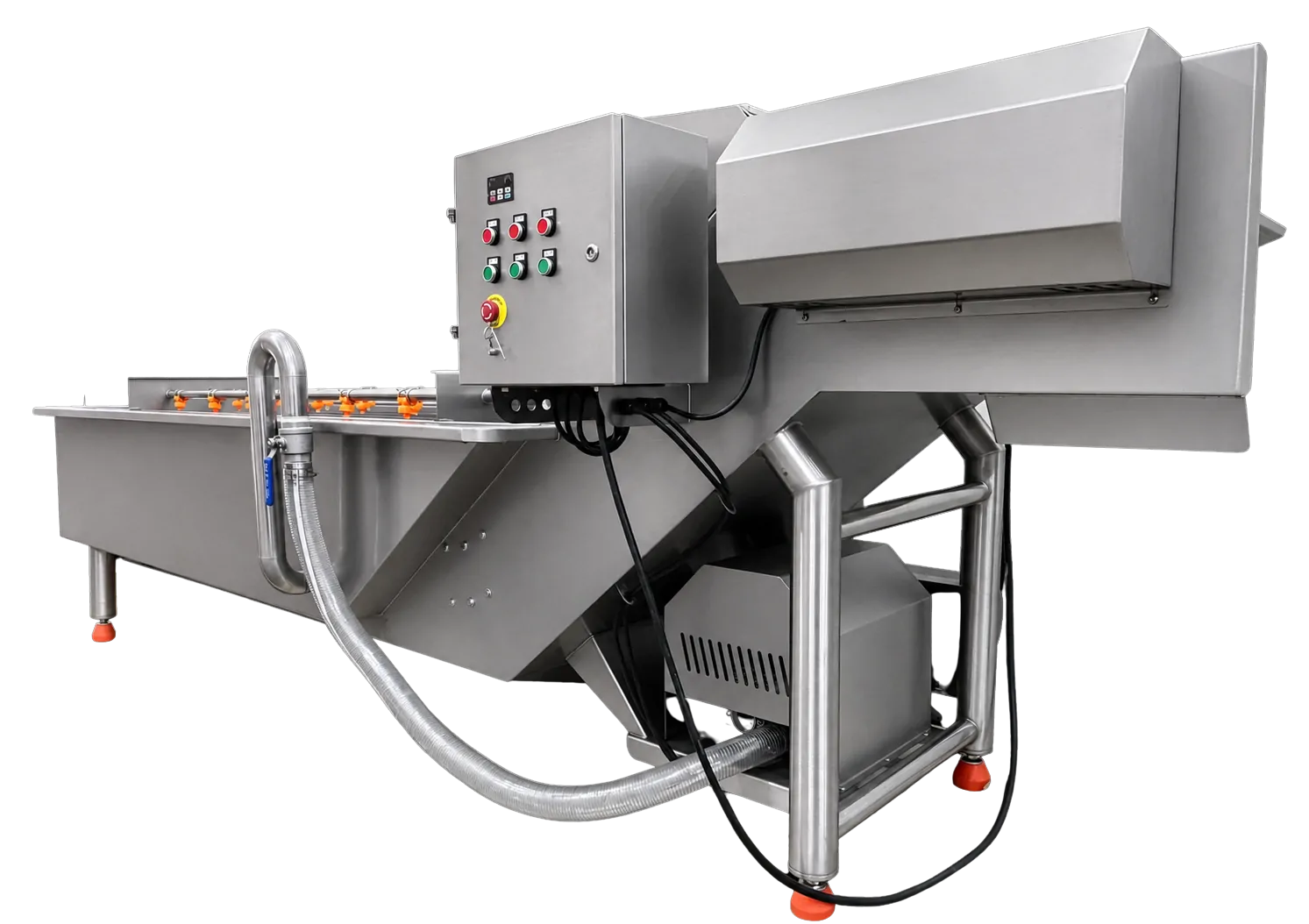

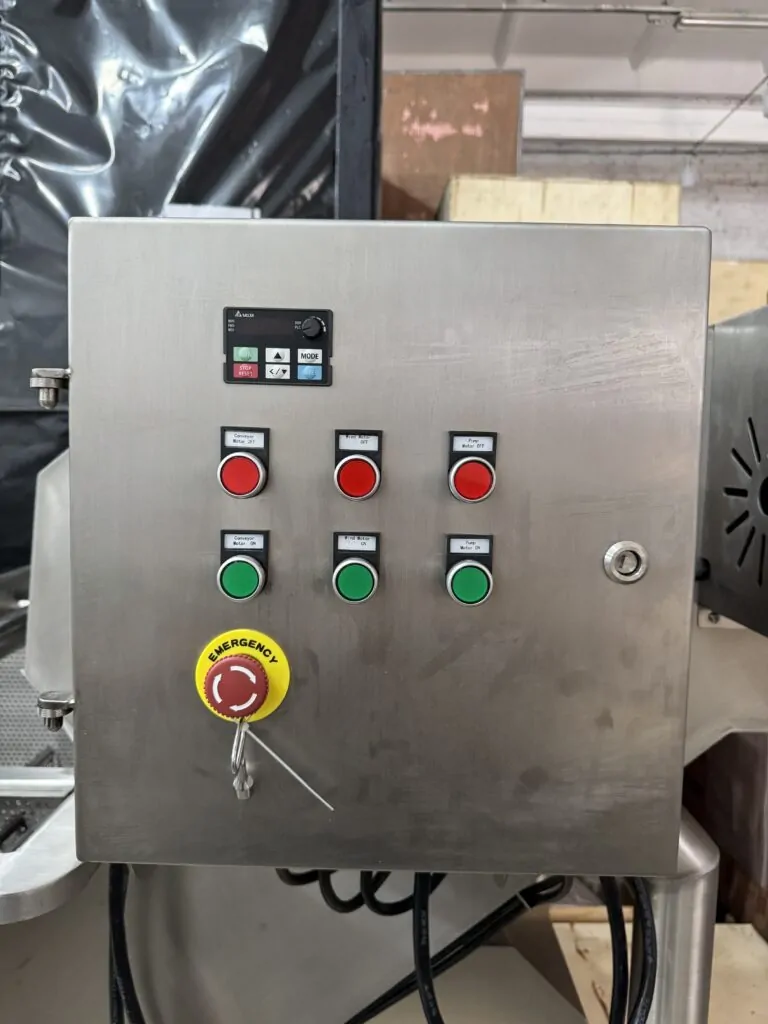

- The electrical part is isolated in a separate external control unit.
| Specifications | L3000 | L4000 | L5000 | L6000 |
| Dimensions, mm | 3051*1270*1500 | 4051*1270*1500 | 5051*1270*1500 | 6051*1270*1500 |
| Length of the effective working area of the bathtub, mm | 1250 | 2250 | 3250 | 4250 |
| Body thickness, mm | 3 | 3 | 3 | 3 |
| Water consumption, m3/h | 0.45 | 0.45 0.45 | 0.45 0.45 | |
| Power, kW | 3,3 | 3,3 | 4,5 | 4,5 |
| Material | stainless steel SUS304 | |||
Bubbling bathtub STvega BWL – who is this product for?
The STvega BWL bubble bath is designed for enterprises where washing raw materials is an important part of the production process, not a formality. It is suitable for food shops, farms, processing plants and industries that work with vegetables, fruits, herbs or root crops.
This equipment is chosen by those who come into contact with sand, earth, leaf residues every day and understand that hand washing or a simple bath does not give a stable result. STvega BWL is well suited for both small and growing productions and medium-sized workshops, where speed and repeatable quality are important.
The bathtub will be useful where you need to reduce manual labor, improve hygiene and prepare the product for further processing without unnecessary losses.
STvega BWL bubbling bathtub – what it recycles
The STvega BWL bubble bath is designed for washing vegetables, fruits, herbs and other plant products. It effectively cleans raw materials from earth, sand, dust and small contaminants due to the active bubbling of water.
During operation, the product is immersed in water, where air bubbles lift and separate the raw materials, gently separating the contaminants from the surface. This method of washing does not injure the product and allows you to preserve its appearance.
The bath is suitable for potatoes, carrots, beets, onions, apples, herbs and other raw materials that require thorough but delicate cleaning before further stages of production.
Bubble bath STvega BWL – why you should buy from STvega
The STvega BWL bubble bath is equipment selected taking into account the real conditions of food production. It is not overloaded with unnecessary functions, but performs its task stably and predictably.
The design of the bathtub is simple and understandable for the staff. The operator quickly understands the principle of operation, and maintenance does not require special skills. All elements in contact with the product are made of materials suitable for the food industry and daily washing.
By purchasing equipment from STvega, the client receives not just a bathtub, but a support solution. The company advises before buying, helps to choose a model for production volumes and accompanies after launch.
This is an approach that allows you to avoid mistakes and immediately get a working result.
STvega BWL bubble bath – frequently asked questions
What products is the STvega BWL bubble bath suitable for?
The bathtub is suitable for washing vegetables, fruits, herbs and root vegetables. It works effectively with products contaminated with earth, sand or plant residues.
Does STvega BWL bubble bath damage product?
No. The bubbling principle of washing is soft. Air bubbles clean the product without mechanical pressure, so the raw material retains its shape and appearance.
Is the STvega BWL bubble bath suitable for daily work?
Yes. The bathtub is designed for regular operation in food production conditions and works stably under daily loads.
How many people do you need to operate the STvega BWL bubble bath?
One operator is enough to work. This allows you to reduce personnel costs and simplify the organization of the process.
How difficult is the cleaning and maintenance of the STvega BWL bubble bath?
Maintenance is simple. After the change is completed, the bathtub is easily rinsed, and the structure does not have hard-to-reach places where dirt can accumulate.
Is the STvega BWL bubble bath suitable for small production?
Yes. It is well suited for small and medium-sized enterprises that want to automate the washing of raw materials without complex and expensive solutions.
