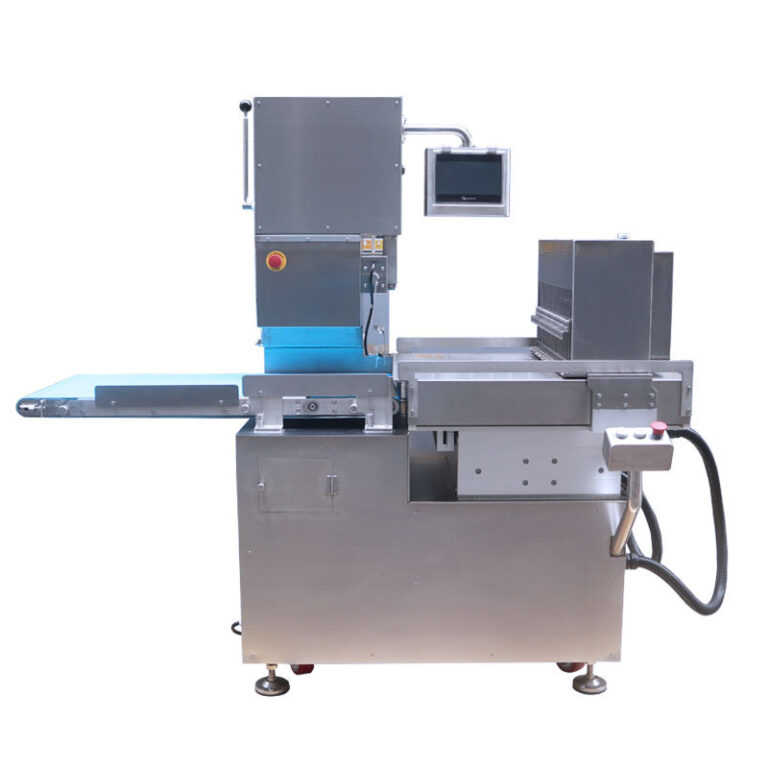

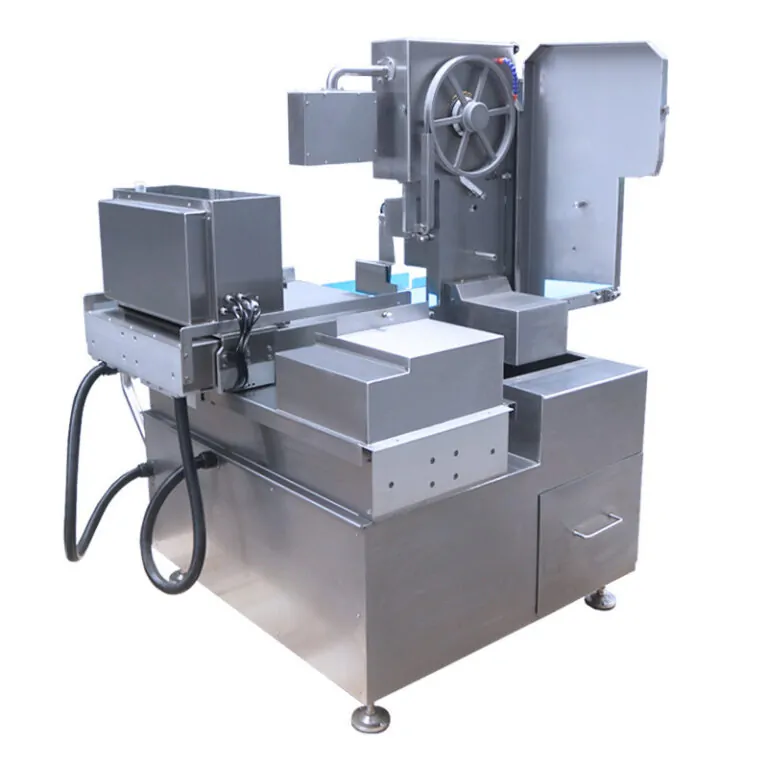

Automatic bandsaw for frozen meat with and without bones STvega Automatic Msaw L400/L600

Description

The STvega Automatic Msaw L400/L600 is a high-performance machine for safe, accurate and uniform cutting of frozen meat, including those with bones. The equipment allows the product to be processed at temperatures from -4 °C to -30 °C, providing clear cuts without damaging the structure. The automated process of feeding and fixing the product significantly reduces manual labor costs and increases production productivity.

Principle of operation:

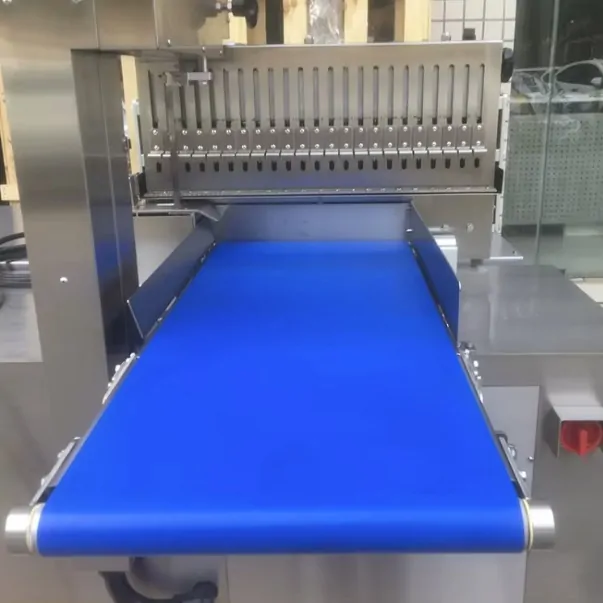

The product, pre-frozen to the desired temperature, is installed by the operator on the receiving table. An automated feeding and locking system presses the product and transports it to the cutting area. Next, with the help of a movable saw blade with a high rotational speed, an accurate cut is made in accordance with the specified dimensions. All parameters, such as cutting length or cycle frequency, are adjustable using a convenient control panel. At the end of the cycle, the cut pieces of product are automatically moved by the conveyor to the unloading area.

Equipment advantages:

• Provides high cutting accuracy with a deviation of up to 0.1 mm.
• It can work with frozen meat down to -30 °C without first defrosting.
• The high cutting speed of up to 10 cycles per minute reduces machining time.
• Industrial-grade saw blade is used for durability and uniform cut.
• The body of the machine and the parts in contact with the product are made of 304 stainless steel.
