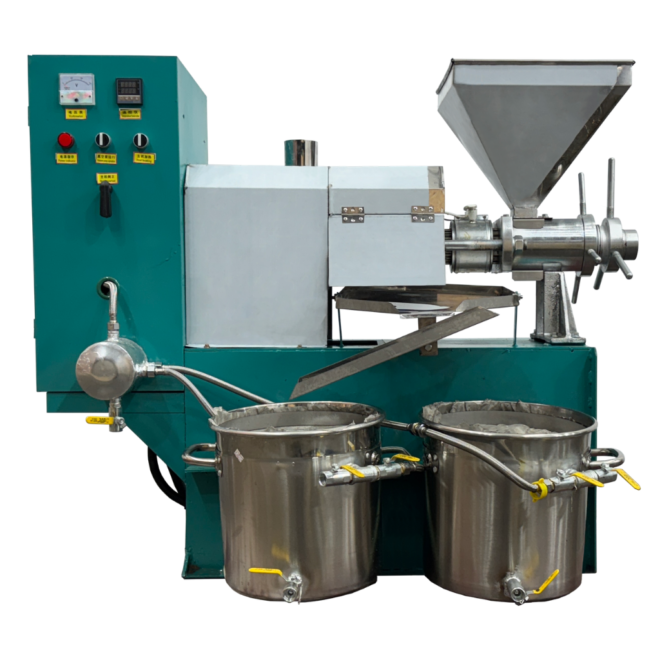

Шнековий прес для віджимання олії з насіння STvega Screw Oil Press H30

The STvega Screw Oil Press H30 is a screw press for squeezing oil from seeds.

Specifications:

Dimensions, mm 1200*780*1100
Spiral diameter (average), mm 55
Spiral speed, rpm 52
Motor power, kW 2,2
Vacuum pump power, kW 0,55
Heater power, kW 0,9
Productivity, kg/h 30-60
Вага, кг 220

Uniqueness of the machine: The oil yield from the peeled sunflower seeds is 20-30%.

Description

The STvega Screw Oil Press H30 is a screw press for squeezing oil from seeds.

Before the seeds get into the screw press, it is recommended to first clean and fry the seeds. In the case of squeezing peeled and roasted seeds, the oil release rate will be higher. If you use non-roasted seeds, then it is recommended to pass the product through the screw press twice.

Equipment advantages:

  • The machine is equipped with a vacuum oil filter.

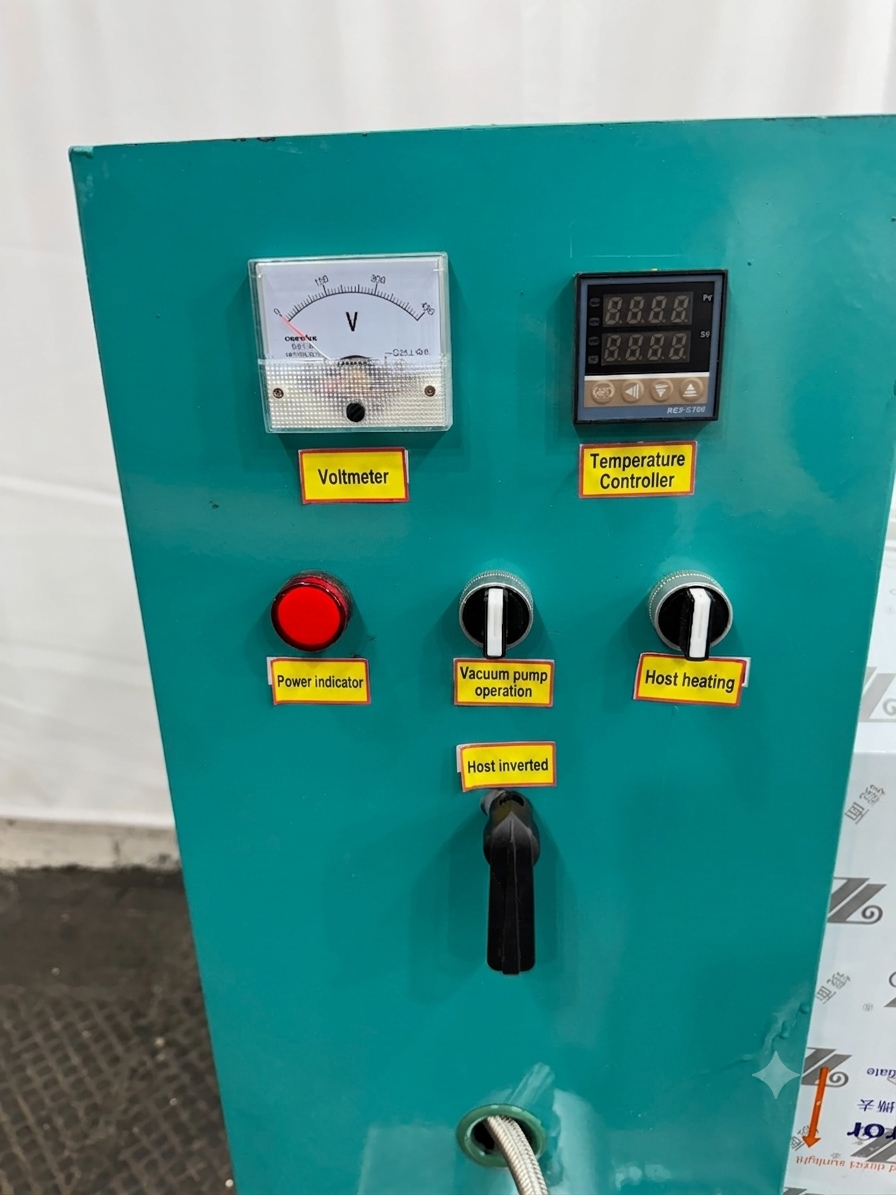

  • The electrical part is isolated in the remote unit.
  • The productivity of the machine is 30-60 kg.

Principle of operation:

The operator turns on the press, pours the seeds into the receiving hopper. Next, the seeds from the hopper enter the screw press squeezing system, where the oil is squeezed out. The pressed oil flows down the chute into the prepared container, and the cake enters the bottom of the machine. After squeezing the unroasted seeds, it is recommended to re-treat the cake in a press to get less waste and more oil.
