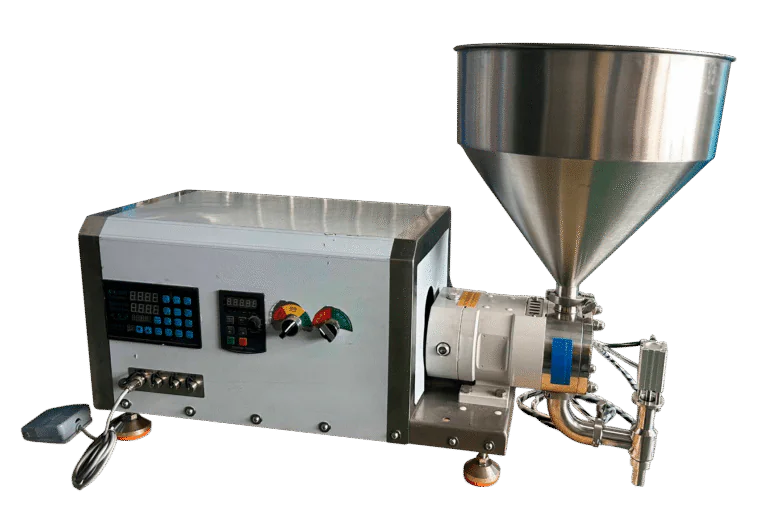

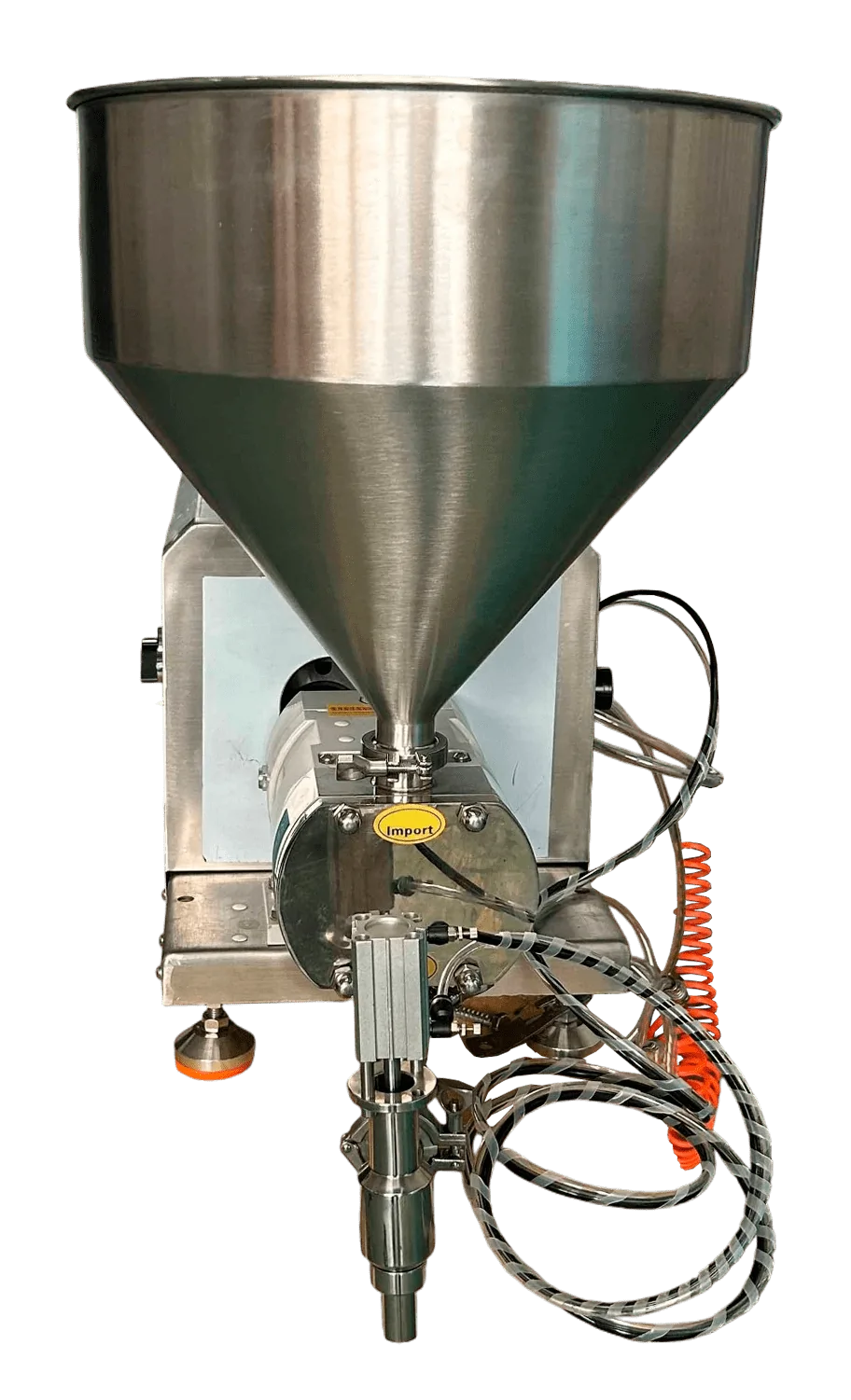

Semi-Automatic Dispenser for Packing Thick and Liquid Products STvega Semi-Automatic Dispenser H1550

Description

The STvega Semi-Automatic Dispenser H1550 is designed for precise dosing and packaging of a variety of viscous liquids such as honey, condensed milk, nut paste, liquid oil, sauces and cream masses. The compact design makes it easy to integrate the equipment into the production process without the need for a lot of space. The dosage is adjusted manually, which allows you to quickly change the serving size from 50 to 500 ml. It is a reliable solution for small and medium-sized businesses that seek to automate the packaging process without unnecessary costs.

Principle of operation:

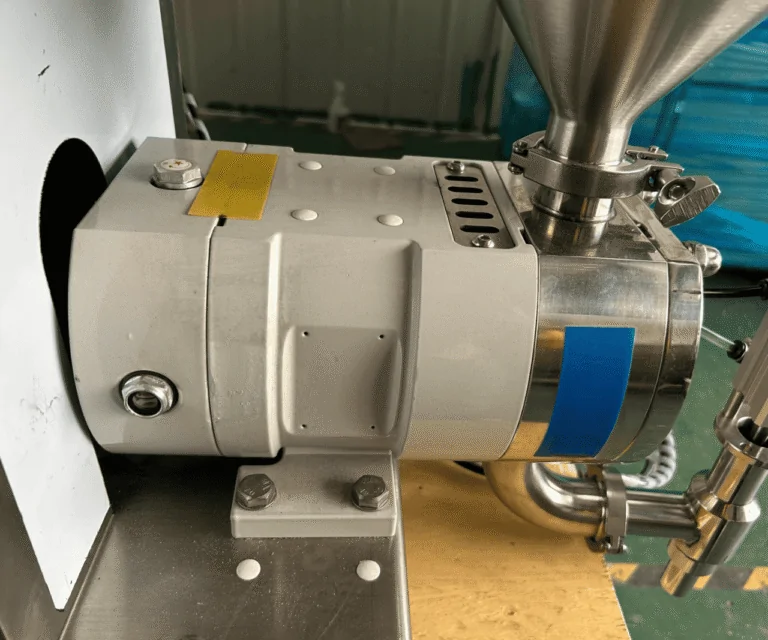

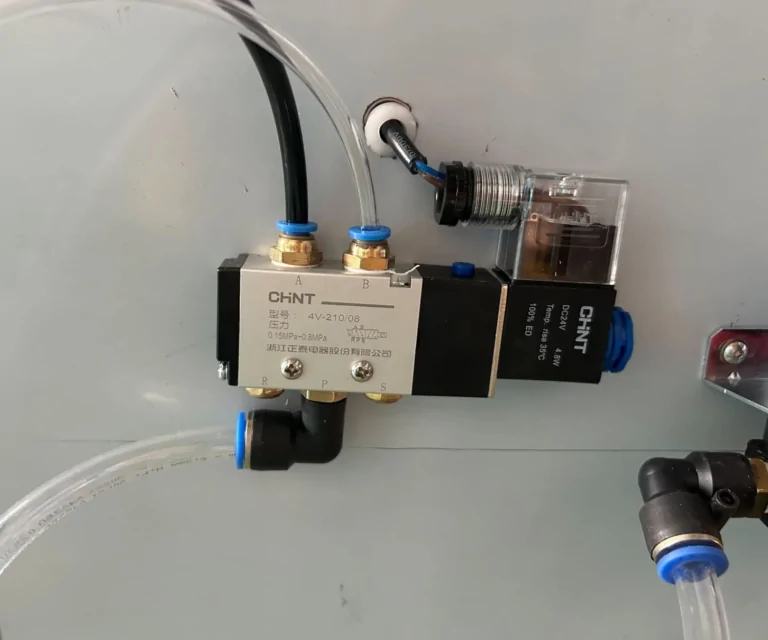

The machine works on the principle of rotary dosing, which ensures high accuracy and uniformity of filling. The device is equipped with LX3A series rotary pumps. The rotor is driven by an electric motor, the opening and closing of the exhaust port is carried out using a cylinder. This allows you to control the volume of product supply by the number of pump revolutions. Packaging is carried out in pre-prepared containers, and the supply of the product is activated automatically using a sensor or manually using a foot pedal.

Attention! To ensure the stable operation of the rotary pump and accurate feeding into the container, the product must have sufficient fluidity! It is recommended to dose the product in a heated state, as increasing the temperature reduces viscosity, ensures smooth delivery through the rotor, and improves the uniformity of dosing.

Equipment advantages:

• The machine ensures accurate dosing of the product thanks to the rotary pump, which minimizes errors in packaging.
• The equipment is suitable for bottling a wide range of thick liquids such as honey, condensed milk, creams and pastes.
• The semi-automatic mode allows you to work efficiently without significant energy costs and with minimal operator intervention.
• All parts of the machine in direct contact with the product are made of SUS 304 stainless steel, the equipment complies with food safety standards.

Types of rotors according to the number of blades:

1. The ThreeBlade Rotor is suitable for liquids of any viscosity, in particular for chocolate.
2. The axe-type rotor is designed for liquids with small soft particles.
3. The single-bladed rotor is suitable for pastes with relatively solid particles up to 3 mm in size.
4. The six-bladed rotor is similar to the three-bladed rotor and is suitable for liquids or pastes of any viscosity, however, the products must be free of solid particles.

Three-bladed rotor Axe-type rotor

Single Blade Rotor Six-bladed Rotor

Note: the equipment includes one type of rotor for the client’s vehicle

The company provides full warranty and after-sales service.
