Description
The STvega Ready Food Packaging Lines H2000 provides a full cycle of automatic packaging, quality control and labeling of ready-to-eat food trays.
Principle of operation:

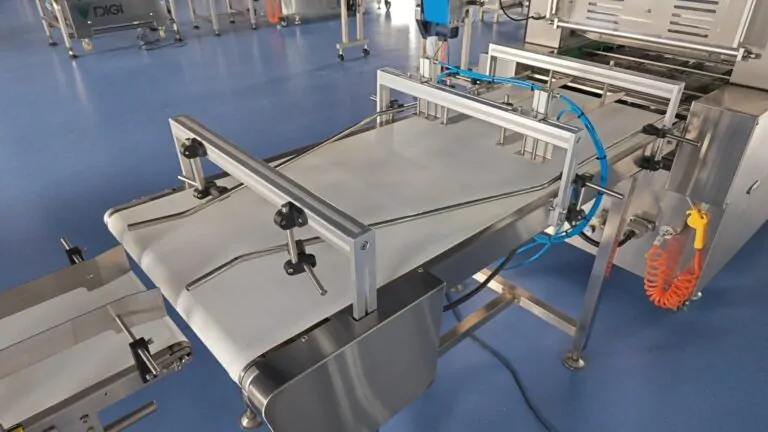

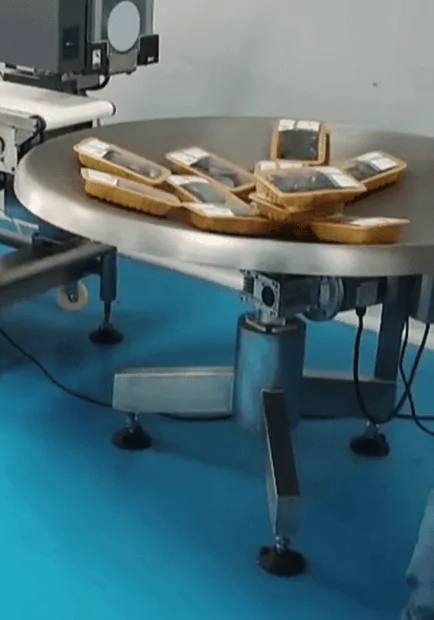

The food trays are moved by a conveyor belt for uniform feeding in several streams into the packaging machine. After packing, the trays are sent to the distribution table with guide boards. There, a special mechanism forms the packaged trays into a single flow. Then they pass through a metal detector, which rejects low-quality products. After checking, a label is glued to the trays using a special machine. The final stage is the unloading of the packaged product by conveyor to the finished product collection machine.
The main technical characteristics of the line:
|
STvega Ready Food Packaging Lines H2000 |
|
|
Stainless Steel Conveyor Line |
|
| Dimensions, mm | 6000*1050*1000 |
| Weight, kg | 320 |
|
Conveyor belt with guides for uniform feeding to packaging |
|
| Dimensions, mm | 1150*700*1000 |
|
Modified Atmosphere Automatic Packaging Machine + Box Number Dialing Mechanism |
|
| Dimensions, mm | 4150*960*1700 |
| Weight, kg | 450 |
|
Metal Inspection + Rejection Machine |
|
| Dimensions, mm | 1480*870*1670 |
| Weight, kg | 190 |
|
Automatic Printing and Labeling Machine |
|
| Dimensions, mm | 1770*850*1450 |
| Weight, kg | 120 |
|
Product Collection Machine |
|
| Dimensions, mm | 1200*1200*1000 |
| Weight, kg | 100 |
