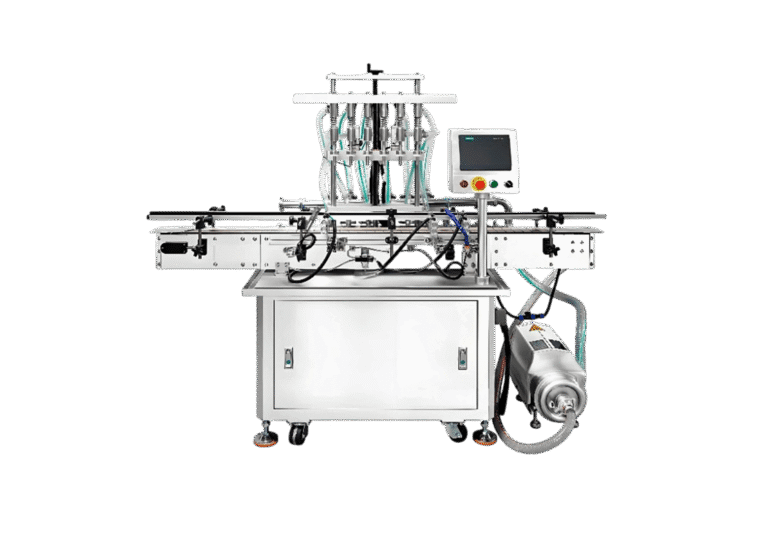

Дозатор для розливу рідких продуктів STvega Liquid Filling Machine

The STvega Liquid Filling Machine dispenser is designed for accurate and efficient dosing of liquid products into bottles.

Specifications:

Machine dimensions, mm 1025*900*1700
Package dimensions, mm 2060*960*1880
Conveyor belt dimensions (l*w), mm 1980*100
Filling volume, ml 100–1000
Filling accuracy, g ±3
Capacity, bottles/min 20–50
Air pressure, MPa 0,5–0,8
Power, kW 0,8
Voltage, V 110/220
Machine weight, kg 259
Weight in the package, kg 360

Machine Uniqueness: Compact design for easy placement in the workshop.



Description

The STvega Liquid Filling Machine dispenser is designed for accurate and efficient dosing of liquid products into bottles. The equipment is suitable for packaging beverages, sauces, liquid additives and similar products in the food industry. Thanks to a wide range of filling volumes and flexible settings, the machine adapts perfectly to customer requirements.

Principle of operation:

The operator sets the filling volume parameters on the touch control panel. The bottles are automatically fed by the conveyor to the bottling area, where they are fixed and filled with liquid through special nozzles. The filling process takes place under pressure, which ensures the accuracy of the dosing. Filled bottles are transferred further along the technological cycle.

Equipment advantages:

  • High dosing accuracy even for small volumes.
  • Ability to process a wide range of liquids.
  • Adjustment of the filling speed depending on the type of container.
