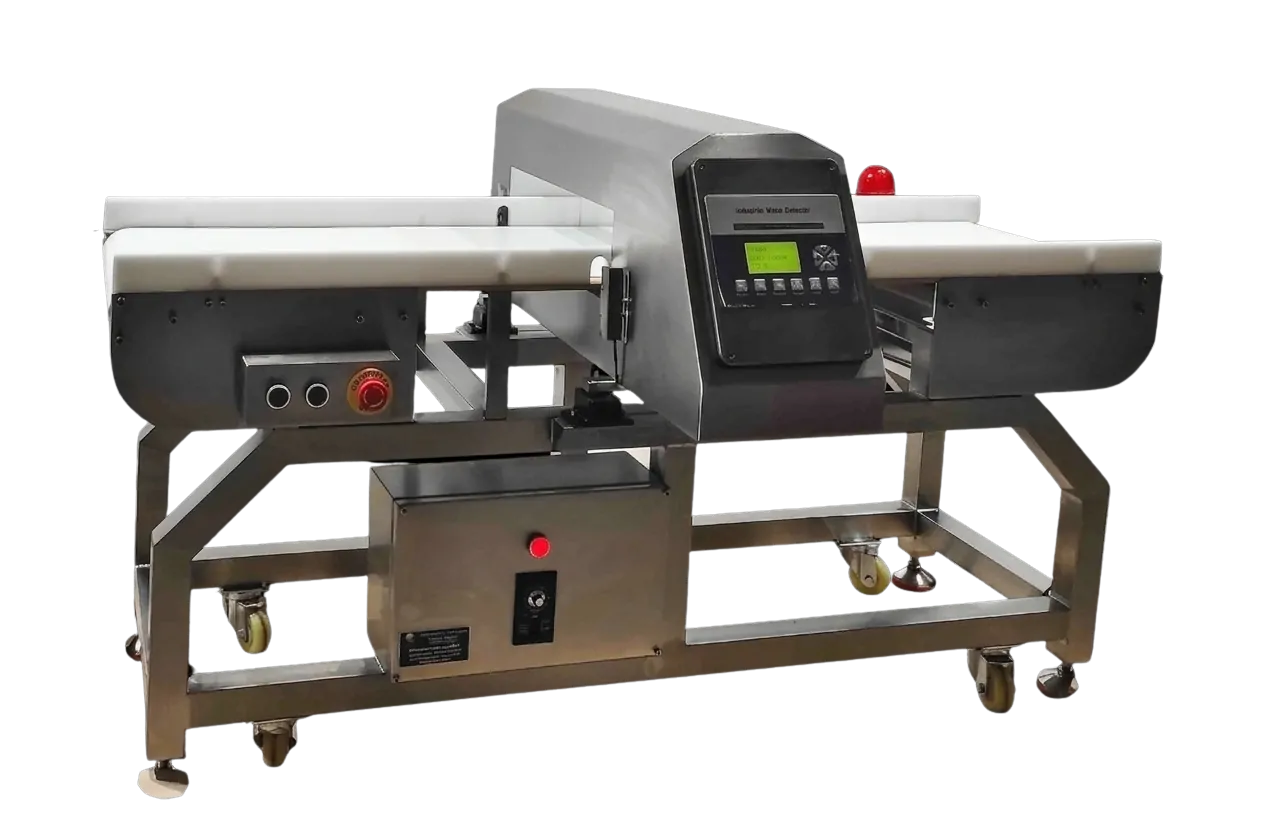

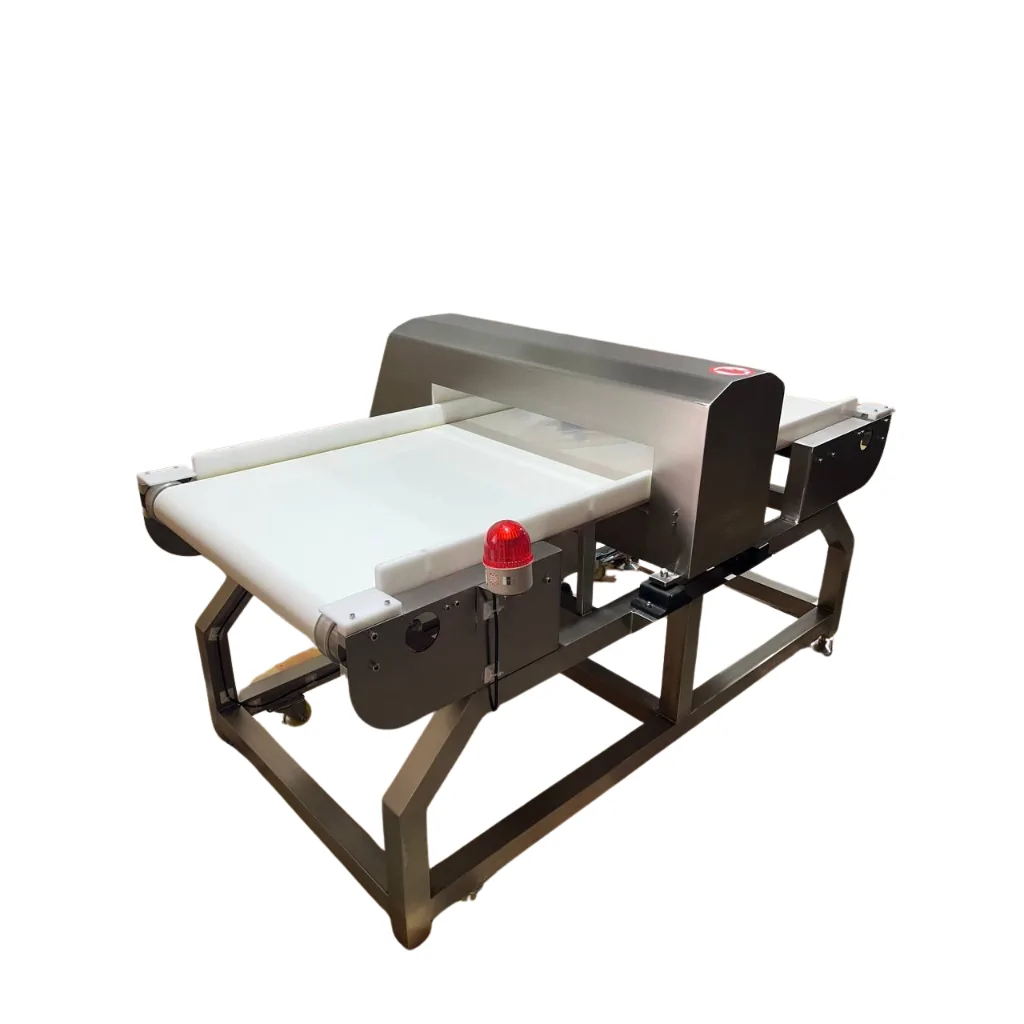

Conveyor metal detector for detecting foreign objects in non-frozen food STvega MD-P

Description

STvega MD-P is a series of professional digital metal detectors with high sensitivity designed to detect foreign metal objects in non-frozen food. Thanks to advanced signal processing technologies (DSP and DDS), the device works efficiently with products with a high moisture or salt content: fresh salads, vegetables, fruits and extruded products. The equipment is adapted to difficult operating conditions (humidity, dust, temperatures down to -20 °C) and complies with strict HACCP, QS and ISO 9000 standards.

Principle of operation:

The product is moved by a conveyor belt through the detector feed-through window. The system automatically analyzes raw materials for the presence of iron particles, non-ferrous metals or stainless steel. If a foreign body is detected, sound and light alarms are instantly activated. If necessary, the machine can be equipped with an automatic rejection system (pusher), which removes the contaminated product into a special tray without stopping the line.

Equipment advantages:

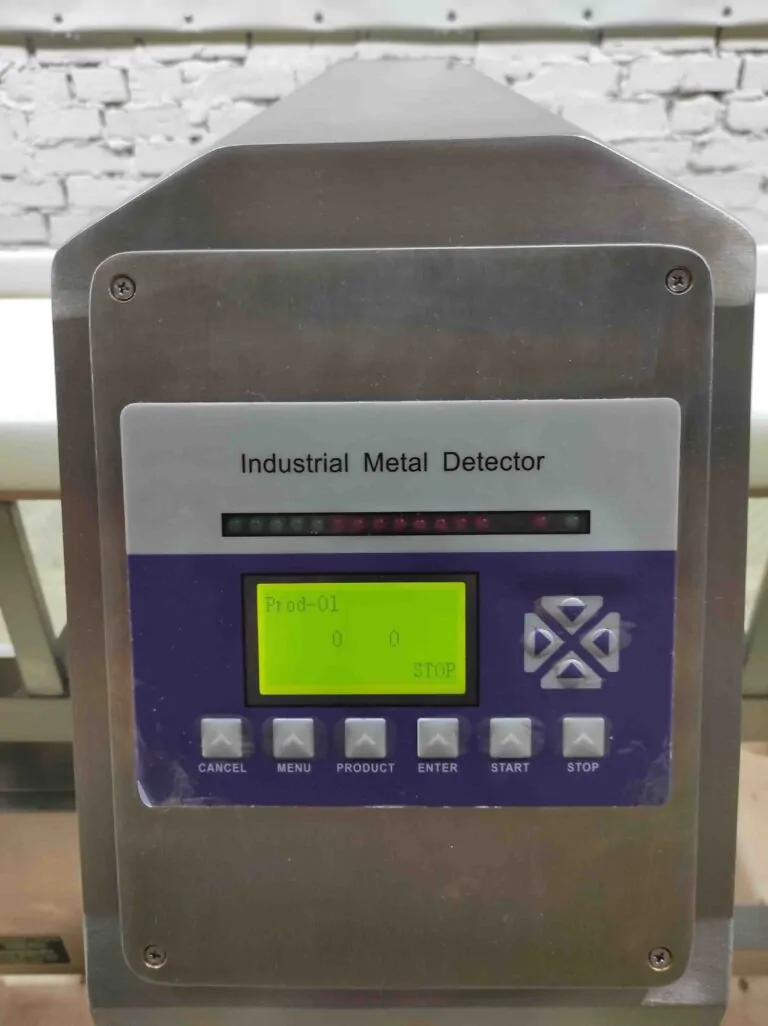

• An intuitive control menu with LCD display allows you to quickly make adjustments and monitor operating parameters.
• The memory system for 99 types of products greatly simplifies the transition between different types of raw materials without a long reconfiguration.
• The hygienic SUS 304 stainless steel construction is easy to disassemble for sanitation and maintenance.
• High detection accuracy ensures the detection of even the smallest metal particles and chips.

Typical values of metal detector sensitivity depending on the size of the window:

Note: The actual sensitivity may vary depending on the type of product (its composition, temperature, moisture and salt content), as well as external factors of the production environment. To obtain maximum detection accuracy, it is recommended to make individual adjustments for each type of raw material.

Conveyor metal detector STvega MD-P — professional quality control for food production

The VEGA MD-P Conveyor Metal Detector is a high-precision equipment designed to automatically detect metal inclusions in products during the production process. The machine combines stable sensitivity, reliable construction and easy integration, making it one of the key elements of the food safety system.

What a metal detector can detect

The system detects impurities from the following materials:

• ferrous metals;

• non-ferrous metals;

• stainless steel.

The sensitivity of the device allows you to find even small fragments of metal that are invisible to the eye, but can pose a risk to the health of the consumer and the reputation of the manufacturer.

What products is STvega MD-P suitable for?

The equipment effectively controls a wide range of goods:

• meat and semi-finished meat products;

• fish and seafood;

• vegetables, fruits, herbs;

• groceries, cereals, flour;

• frozen food and ready meals;

• bakery products;

• food mixtures and bulk products.

The metal detector is suitable for both fresh and frozen products, as well as packages of various types – from film to boxes.

Who needs a conveyor metal detector

This equipment is ideal for enterprises where stable control and compliance with standards are important:

• meat processing plants;

• producers of fish products;

• vegetable processing shops;

• packaging lines for vegetables, cereals, groceries;

• lines of frozen semi-finished products;

• bakery and confectionery industries;

• HoReCa enterprises, ready-to-eat kitchens;

• logistics and packaging companies.

If your products hit supermarket shelves, are exported or certified, a metal detector is an essential element of the technological process.

Advantages of the STvega MD-P metal detector

• High sensitivity and stability of operation. The system accurately identifies different types of metals even in difficult conditions.

• Convenient integration into the line. The built-in conveyor makes it easy to insert the device into any production cycle.

• Robust industrial design. The case is resistant to wear, vibration and temperature changes.

• Simple controls. The intuitive control panel allows you to quickly adjust the operating mode for a specific product.

• Support for the rejection system. On a signal, the metal detector can remove defective products automatically.

• Compliance with international quality and safety standards.

Why you should order a metal detector from STvega

• Deep expertise in food equipment. The company supplies solutions for meat, fish, vegetables, fruits, bulk products and ready meals.

• Double quality control. Each piece of equipment is tested at the factory and re-tested in Ukraine.

• Adaptation to your tasks. We can choose the optimal conveyor width, sensitivity and configuration for specific types of products.

• Service, installation and training of personnel. STvega accompanies the customer from the moment of selection, through installation, to after-sales support.

• Ability to test equipment. In the showroom, you can check the operation of the metal detector on real product samples.

• We work with small, medium and large production. For each – their own cost-effective solution.
